Alkaline barrel plating -Dehydrogenase - Hot dip galvanizing equipment

  • 1. Large roller can be extremely PP PP-casting materials, CNC machine drilling.
  • 2. The transmission system adopts each station of a transmission gear coupling, electromagnetic speed.
  • 3. Automatic weighing feeding device can reduce labor intensity.
  • 4. passivation automatic folder barrel washing equipment and automatic rejection of water color dryer.
  • tank surface
  • Anode holder PP
  • Anode rod φ35×3mm Copper Tube
  • cathode holder copper
  • PP holder PP
  • barrel φ390×1200mm Flashlight 15mm homemade white PP board, an arm of steel casting
  • seal plate PP
  • fasteners Groove surface of stainless steel, other galvanized bolts

Zinc plating equipment . zinc plating plant.

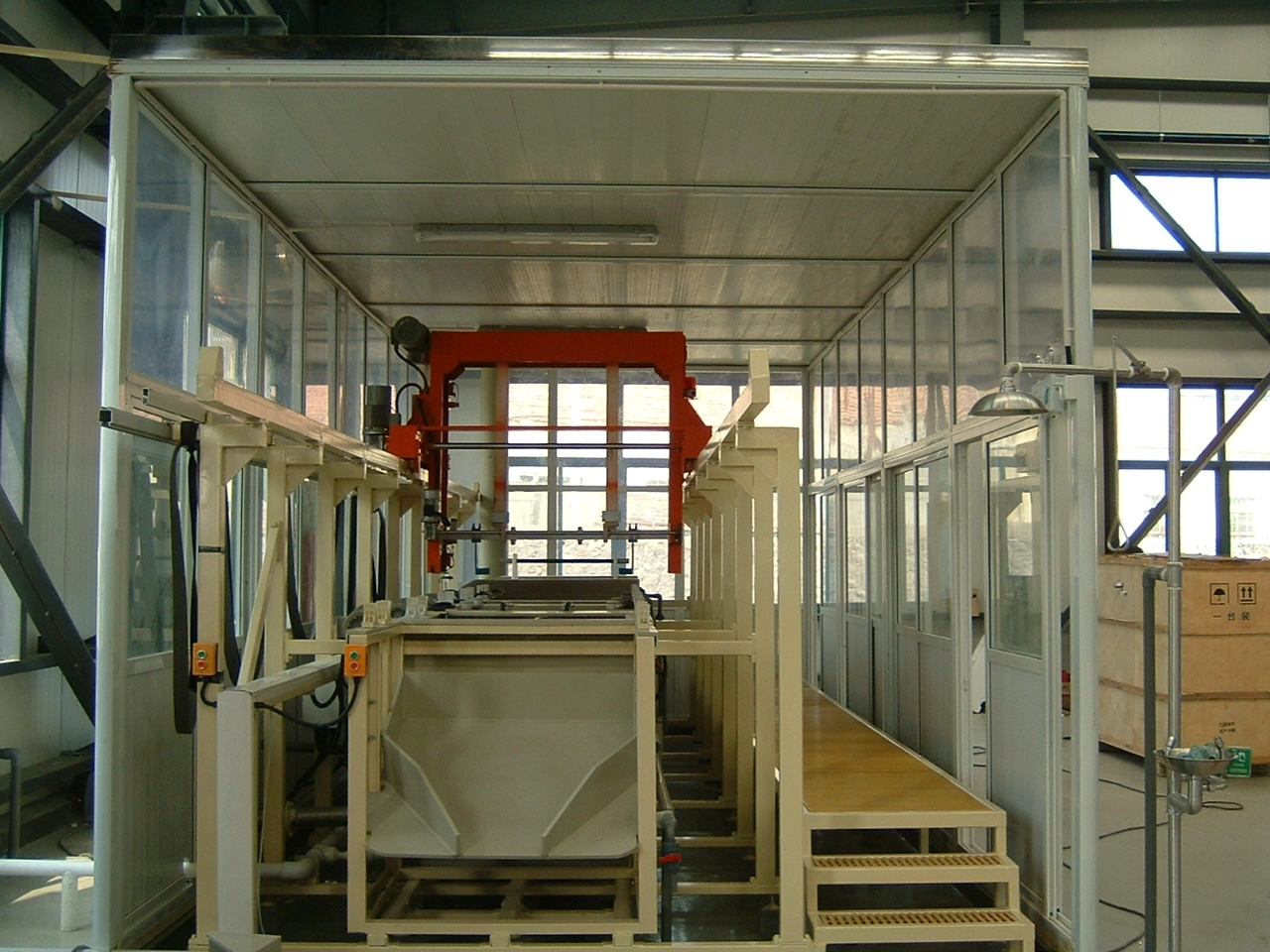

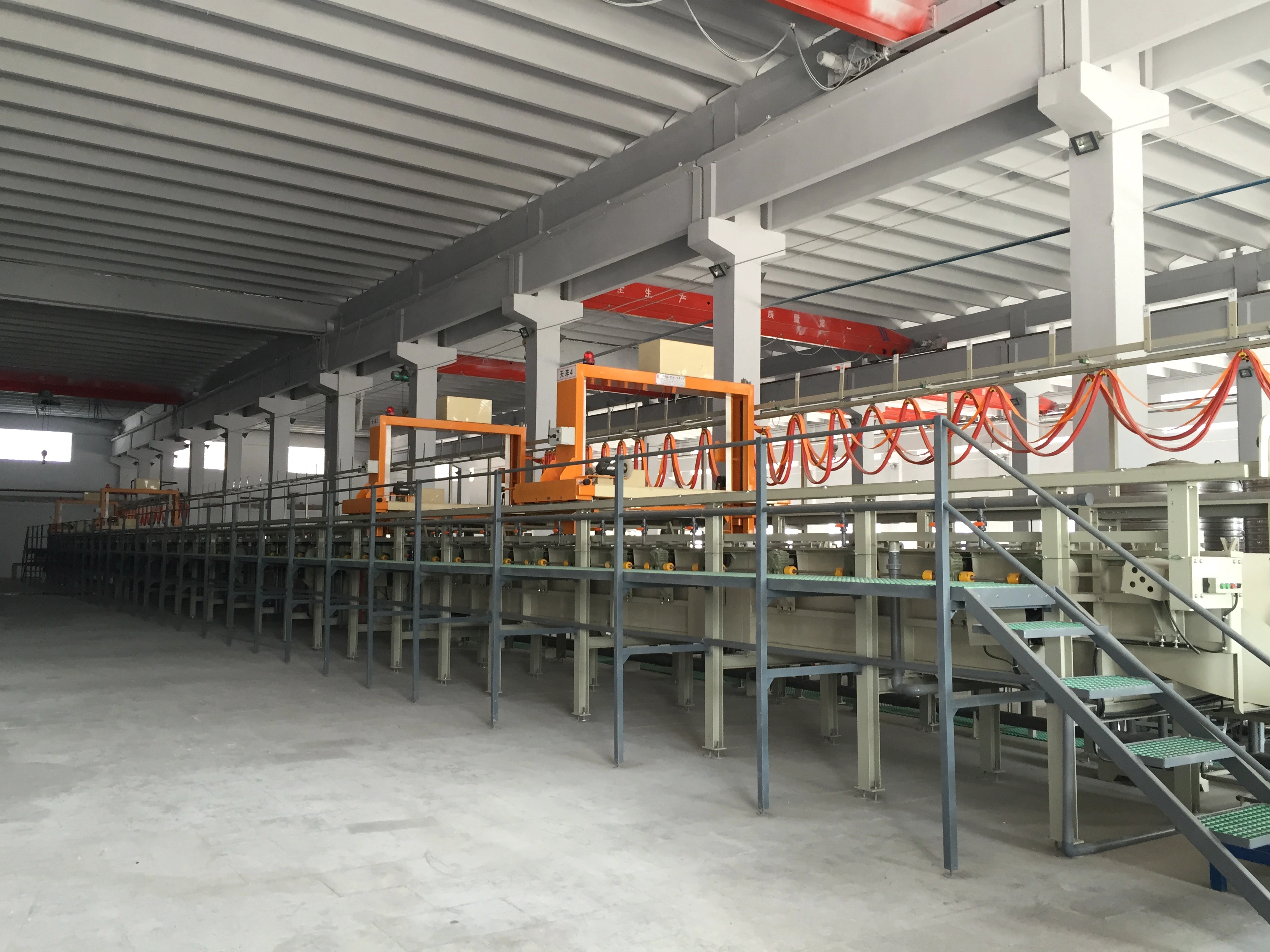

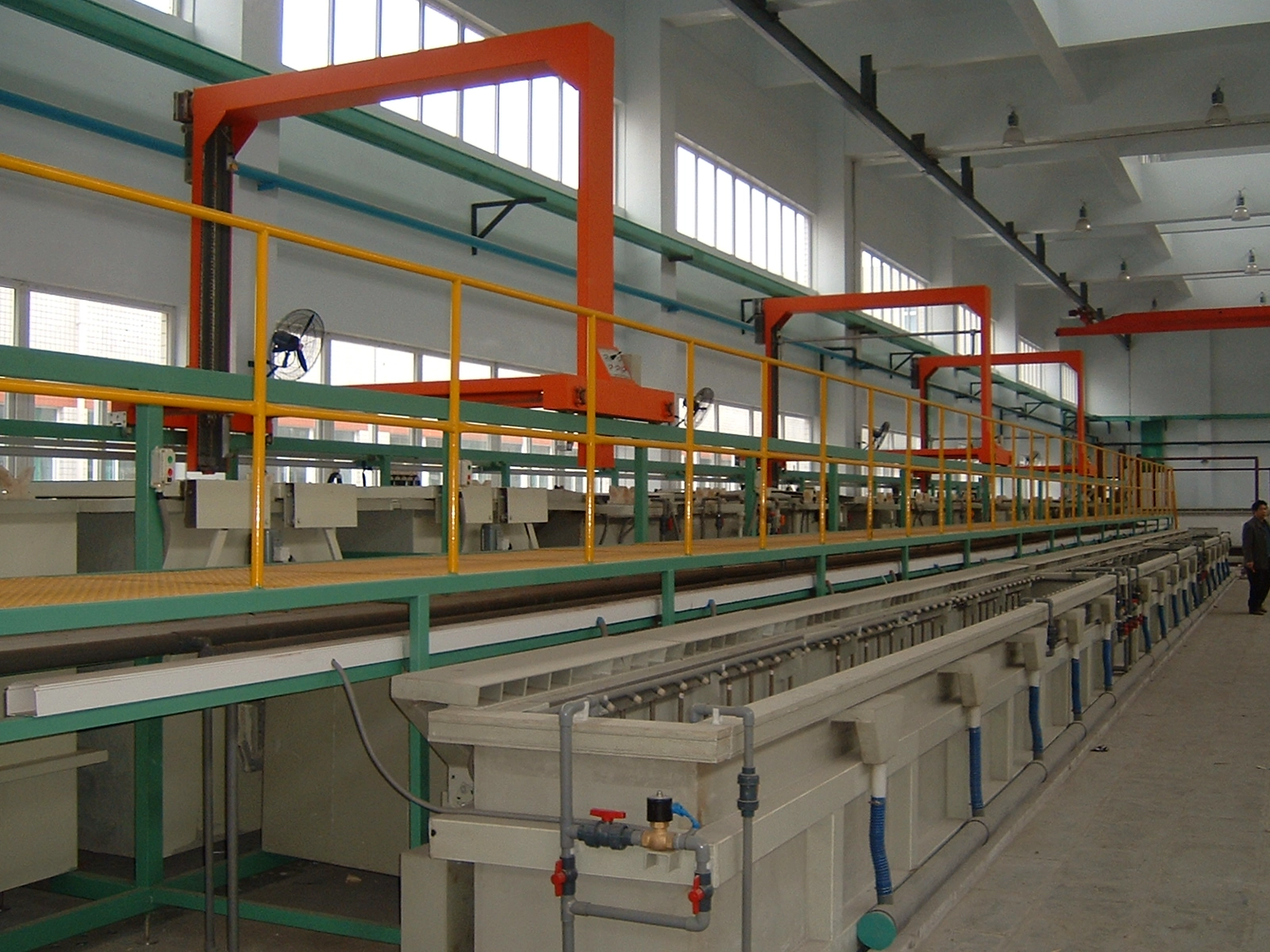

Barrel plating automatic production line can be adapted to a variety of small parts, standard parts and various types of plating needs substantial increase in labor productivity. Plating has been provided to expect from the rejection of the full set of water and drying equipment.
1. Large roller can be extremely PP PP-casting materials, CNC machine drilling.
2. The transmission system adopts each station of a transmission gear coupling, electromagnetic speed.
3. Automatic weighing feeding device can reduce labor intensity.
4. passivation automatic folder barrel washing equipment and automatic rejection of water color dryer.
   We can offer from plating material dumped water drying until a full set of equipment. Special ac

NO Name Size Materials and instructions unit Qua Note
I Tank body
1 Pre-degreasing tank 1500×900×1100mm 3mm304 stainless steel plate, surrounded by strengthening and insulation pcs Made in China
2 Chemical degreasing tank 1500×3200×1100mm 3mm304 stainless steel plate, surrounded by strengthening and insulation pcs Made in China
3 Electrically released sump 1500×1800×1100mm 15mm PP plate production, surrounded by strengthening and encapsulating PP board pcs Made in China
4 barrel plating tank 1500×4500×1100mm 15mm PP plate production, surrounded by strengthening and encapsulating PP board pcs Made in China
5 Hydrochloric acid wash tank 1500×2400×1100mm 15mm PP plate production, surrounded by strengthening and encapsulating PP board pcs Made in China
6 Washing triple tank 1500×2400×1100mm 15mm PP plate production, surrounded by strengthening and encapsulating PP board pcs Made in China
7 Washing quadruple tank 1500×3200×1100mm 15mm PP plate production, surrounded by strengthening and encapsulating PP board pcs Made in China
8 Washing double tank 1500×1600×1100mm 15mm PP plate production, surrounded by strengthening and encapsulating PP board pcs Made in China
9 passive tank 850×1600×900mm 15mm PP plate production, surrounded by strengthening and encapsulating PP board pcs Made in China
10 Washing triple tank 850×2700×900mm 12mm PP plate production, surrounded by strengthening and encapsulating PP board pcs Made in China
11 light washing quadruple  850×3600×900mm 12mm PP plate production, surrounded by strengthening and encapsulating PP board pcs Made in China
12 Melting zinc tank 5000×1300×1100mm 6mmQ235 steel plate, surrounded by strengthening pcs Made in China
III Mechanical part
1 Rolling gantry rail traffic CBG-1 Walking with imported Siemens motor
2 High passive driving the clip barrel CBJ-1A Walking Motor Taiwan's Teco
3 Rail  rail 100×60mm square steel tube
4 High Rail frame 150×150mmsquare steel tube
5 Pillar and support 60×80mmsquare steel tube
6 Bottom frame H 200 60×80mmsquare steel tube
7 tank bottom with PP wetted plate 8mmPP
8 Transmission mechanism Each station of a gear coupling rotation
9 Weighing feeder The dump feeder, vibration feeder, weighing mobile feeding vehicles
IV Electrical control
1 PLC automatic control cabinet control 4 sets drive
2 Auxiliary equipment control cabinet
3 Accompanying car with a manual control box
4 touch screen 10.4 inch color screen
5 Inverter 5.5K
6 Stainless steel trunking, A3 bracket
7 Aluminum positioning groove, hit the block
8 Truck thread 40 advanced core flat cable
9 Slip line trolley
10 Proximity switches, photoelectric switches S18SN6DL
11 Temperature-controlled device DTA4848R1
12 Electric heating low level automatic cut-out device
13 Bridge, wearing a wire tube, wire
pcs Made in China





Zinc plating equipment, there are barrel zinc plating and rack plating equipment, we can make it according to your requirement.
