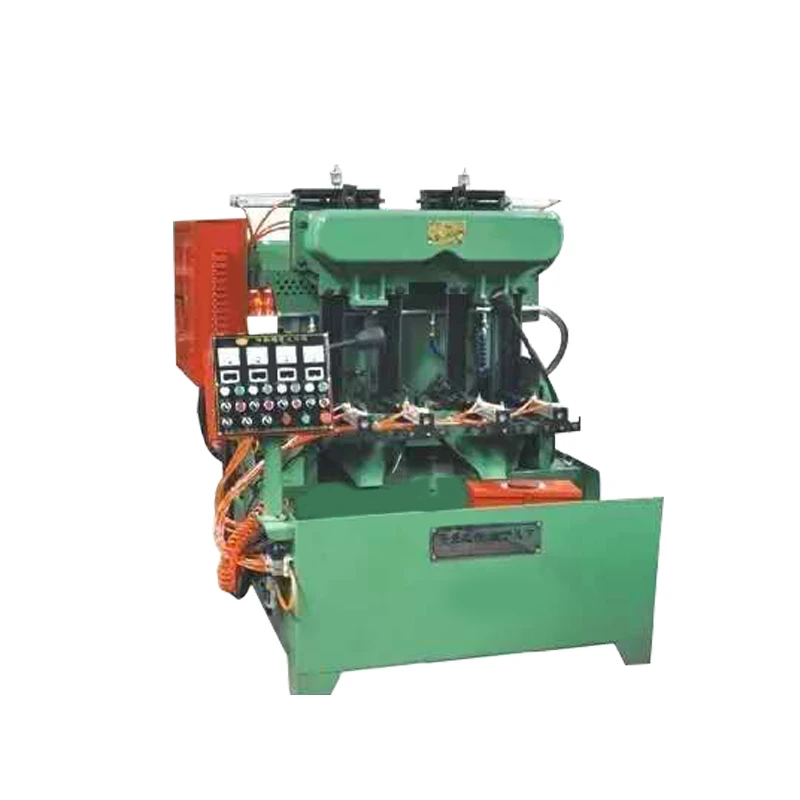

Double Spindle Flange & Hex Nut Tapping Machine

Double Spindle Flange & Hex Nut Tapping Machine

  • Main Technical Parameters
  • Model Size   No. of
  • Spindle Productivity (pcs/min.) Main Motor  (kw) Motor of Material Mixing (kw) Oil Pump (kw) Air Pressure (kg/cm) Dimension(L x W x H/mm) Weight (kg)
  • Flange Hex
  • LDH-M4-2 M3 2 80 100 0.75-4 0.55 0.125 1.5-2.5 1100×1100×1800 450
  • M4 2 80 100
  • LDH-M8-2 M5 2 70 100 0.75-4 0.55 0.125 2-3 1100×1100×1800 450
  • M6 2 65 90
  • M8 2 60 80 500
  • LDH-M12-2 M10 2 50 70 1.5-4 0.55 0.125 3-4 1100×1100×1800 500
  • M12 2 45 60
  • LDH-M16-2 M14 2 40 50 2.2-6 0.55 0.125 3-5 1100×1100×1800 500
  • M16 2 30 40
Salient Features


STEADY FEEDING OF MATERIAL BY AIR PRESSURE.
EASY ADJUSTMENT AND MAINTENANCE OF BELTS.
RAISES 30% - 40% LIFETIME OF TAP THAN CONVENTIONAL TAP.
HIGHER EFFICIENCY, EASY TO CHANGE TAP AND CAN WORK SEPARATELY BY SINGLE SHAFT.
STOP FEEDING WHEN TAP IS BLUNT OR BAD BORE DIAMETER.
AIR PRESSURE CYLINDER PULLS BACK AUTOMATICALLY TO READY POSITION WHILE DETECTING ABNORMAL OPERATION.
EASY TO CHANGE THE SPEED OF TAPPING BY USING OUR AIR PRESSURE CYLINDER.
ECONOMICALLY SAVE MORE POWER AND LESS SPACE REQUIREMENT.
