Home > Products > Bolt Making Machine Supplier > 3 station Bolt Making Machine
3 station Bolt Making Machine3 station Bolt Making Machine3 station Bolt Making Machine3 station Bolt Making Machine

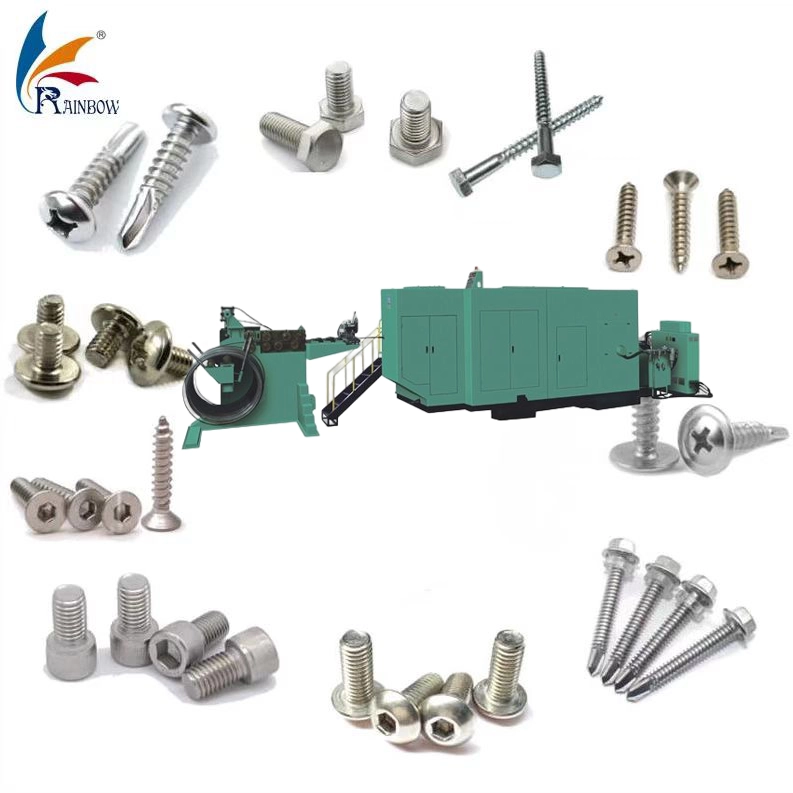

3 station Bolt Making Machine

  • model 63S
  • FORGING Station (NO) 3
  • FORGING FORCE (KGS) 35000
  • OUTPUT Rate (pcs / min) 270.
  • Cut DIA. (Mm) 8.
  • Cutting Length (mm) 70.
  • APPLICABIE BOLT DIA (mm) 3-6.
  • Long flowering snacks (mm) 10-50.
  • APPROX.WEIGHT (kg) 7000

Product Discription:

         Auto Multi-station Cold forging fomer is a specialized machine tool with high efficency and automation among forging machinery. Cold forging fomers are used as an important means for producing different kinds of bolts, screws, rivets and nuts in the field of fastener industry. The formers are also widely used in different national economic territories for producing fasteners and abnormal non-standard parts such as aviation,steamer,machinery, rail traffic, vehicle,motorcycle,bicycle,sewing machine, construction,furniture, light industry and daily necessities, etc.

MODEL 63S 63L 83S 83L 83LL 103S 103L 133S
FORGING Station (NO) 3 3 3 3 3 3 3 3
FORGING FORCE (KGS) 35000 35000 60000 60000 65000 80000 90000 105000
OUTPUT Rate (pcs / min). 270 150 220 160 120 180 130 150
Cut DIA. (Mm) 8 8 10 10 10 12 12 15
Cutting Length (mm) 70 120 85 135 175 105 180 140
Motor power (kW) 11 11 15 22 22 22 22 30
P.K.O STROKE (mm) 12 20 12 15 30 15 30 20
K.O.STROKE (mm) 52 115 65 125 165 80 165 110
DIE PITCH (mm) 60 60 70 80 80 90 90 110
Overall DEMS.OF eliminated DIE 30 30 30 30 30 45 45 55
DEMS.OF total DIE PUNCH 40 * 90 40X110 45 * 100 45 * 115 45 * 115 53 * 115 53 * 115 60 * 115
DEMS.OF total DIE MAIN 50 * 85 50X123 60 * 95 60 * 135 60 * 185 75 * 108 75 * 185 85 * 135
APPLICABIE BOLT DIA (mm) 3-6 3-6 5-8 5-8 5-8 6-10 6-10 8 to 12.7
Long flowering snacks (mm). 10-50 30-100 12-60 30-110 30-150 15-75 30-150 20-105
APPROX.WEIGHT (kg) 7000 9000 10000 13000 15500 13800 19000

18000
