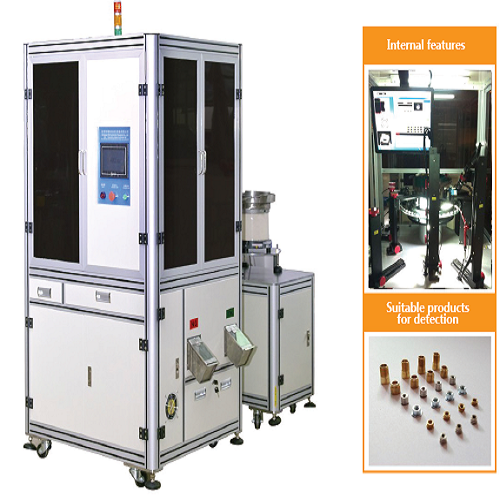

Rglass plate images screener

  • Model:RK-1500 series
  • Head diameter (mm):φ1-φ35
  • Head thickness(mm):φ0.4-φ35
  • Height(mm):1-35
  • Screening Accuracy:0.005-0.002
  • Air pressure (kg/cm):5
  • Main computer:Industrial PC
  • Digital camera:German CCD
  • Net Weight (KGS):600
  • Machine size LxWxH:1350x1100x1800

Machine Introduction

Sorting system is the use of high-resolution cameras to obtain images of the object to be tested, and then by the industry with R & D team developed software systems trick is matching the size of the image and the relationship between, and thus low-cost, high-performance technology from the test operation. Use of this system can reduce tedious and labor-consuming manual processes and reduces human error detection, significantly enhance the quality of products shipped, increasing the company's external competitiveness.

Machine Features

1. Using glass of high transparency, objects can be placed on the detection of the disk smoothly.

2. Detection range: screws, nuts, seals, silver contacts, stampings, special hardware, electronic components,

3. Suitable for small objects

4. Detection speed: Depending on the object and the feeding system. Max. speed: 50-1200 piece/minute.

5. Easy replacement of parts, simple operation.

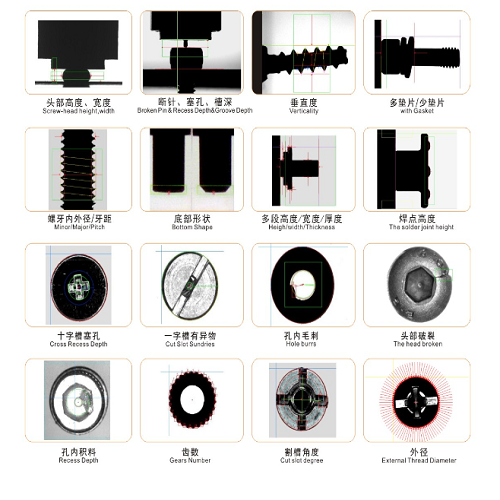

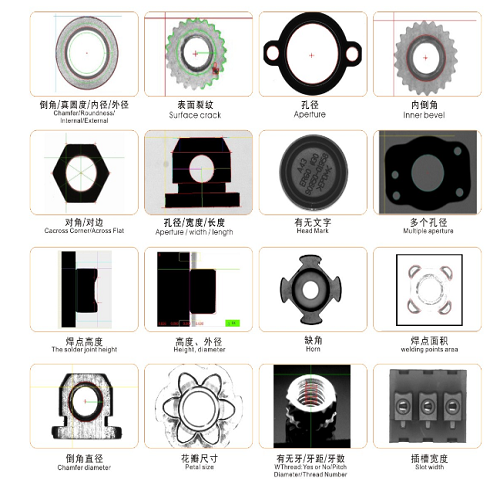

Items can be detected:

 Multi-Height , Multi-width , Length , Internal/external thread diameter , Pitch diameter/thread number,Slanted thread/deformed thread, Head crack, Burrs or chips, Broken pin or recess depth , Across comer/across flat ,Diameter/hole diameter , Roundness, Chamfer , Thread or not ,With coating ,With washer , Cross recess depth  , Surface flaw.




Exhibition Abroad:

Every year, we will attend to at least two  foreign exhibitions, like in India, Vietnam.
