Home > Products > Bolt Making Machine Supplier > 4 Station Bolt Making Machine
4 Station Bolt Making Machine4 Station Bolt Making Machine4 Station Bolt Making Machine4 Station Bolt Making Machine

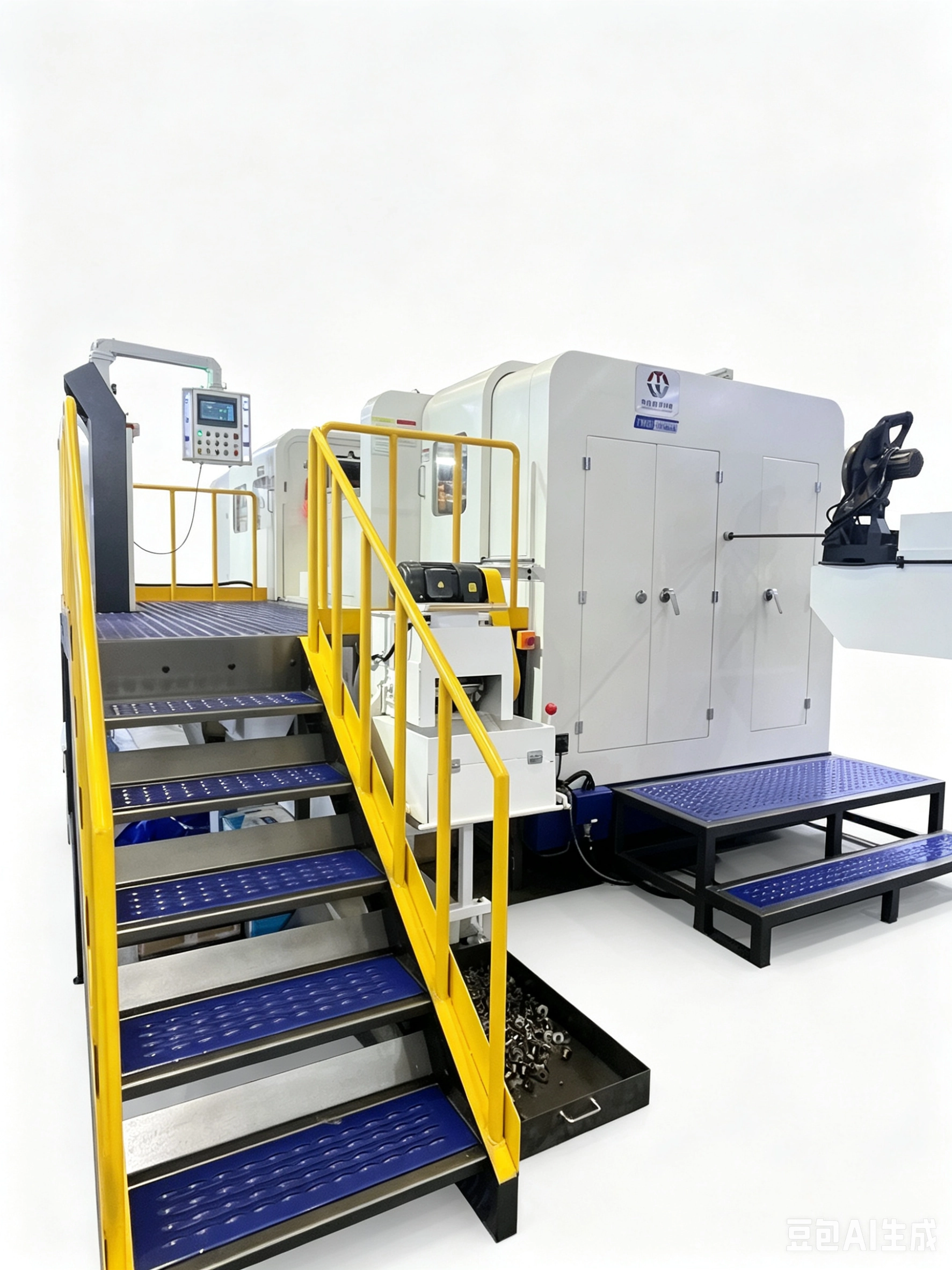

4 Station Bolt Making Machine

  • Model: RBF-64S
  • Forging force: 35.000Kgs
  • Output rate: 140-210pcs/min
  • P.K.O. Stroke: 12mm
  • K.O. Stroke: 70mm
  • Main motor power: 15Kw
  • Approx. weight: 8T
  • Applicable bolt dia.: 3-6mm
  • Shank length of blank: 10-65mm

Product Description:

Auto Multi-station Cold forging fomer is a specialized machine tool with high efficency and automation among forging machinery. Cold forging fomers are used as an important means for producing different kinds of bolts, screws, rivets and nuts in the field of fastener industry. The formers are also widely used in different national economic territories for producing fasteners and abnormal non-standard parts such as aviation,steamer,machinery, rail traffic, vehicle,motorcycle,bicycle,sewing machine, construction,furniture, light industry and daily necessities, etc.

Model

Unit

RBF-64S

Forging force

Kgs

35.000

Max.cut-off dia.

mm

Ф8

Max.cut-off length

mm

80

Output rate

pcs/min

140-210

P.K.O. Stroke

mm

12

K.O. Stroke

mm

 70

Main ram stroke

mm

 110

Main motor power

Kw

 15

Overall dims. of cut off die

mm

 Ф30x45L

Overall dims. of punch die

mm

 Ф40x90L

Overall dims. of main die

mm

 Ф50x85L

 Die pitch

mm

 60

 Approx. weight

T

 8

 Applicable bolt dia.

mm

 3-6

Shank length of blank

mm

 10-65


Machine details:




Workshop overview:

Use high precision tools, and machine main body is whole casting.



Clients inspection at factory:

Foreign customers inspect their machines at our factory before despatch!


Machine packaging:



Exhibition Abroad:

Every year, we will attend to at least two  foreign exhibitions, like in India, Vietnam.
