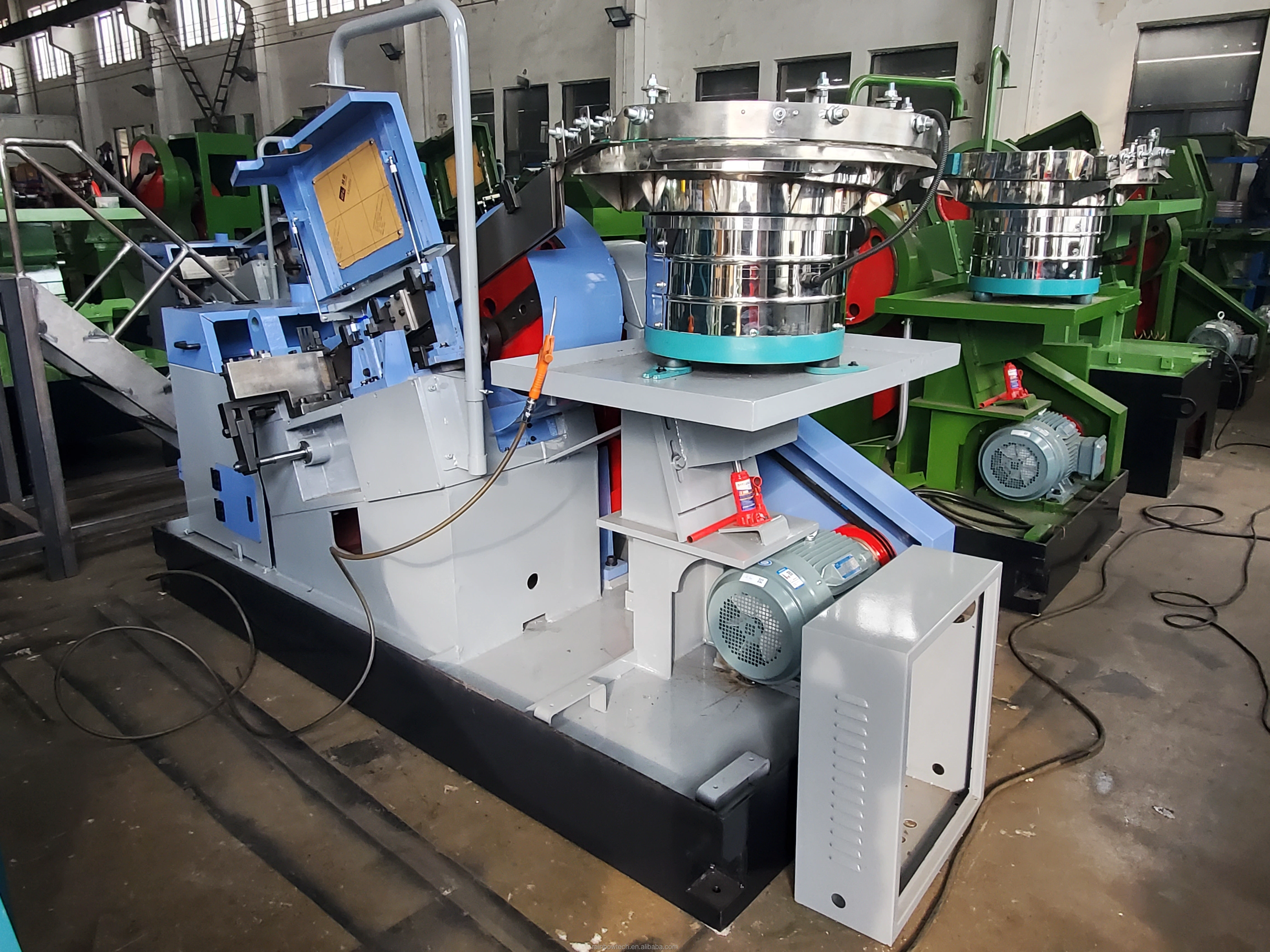

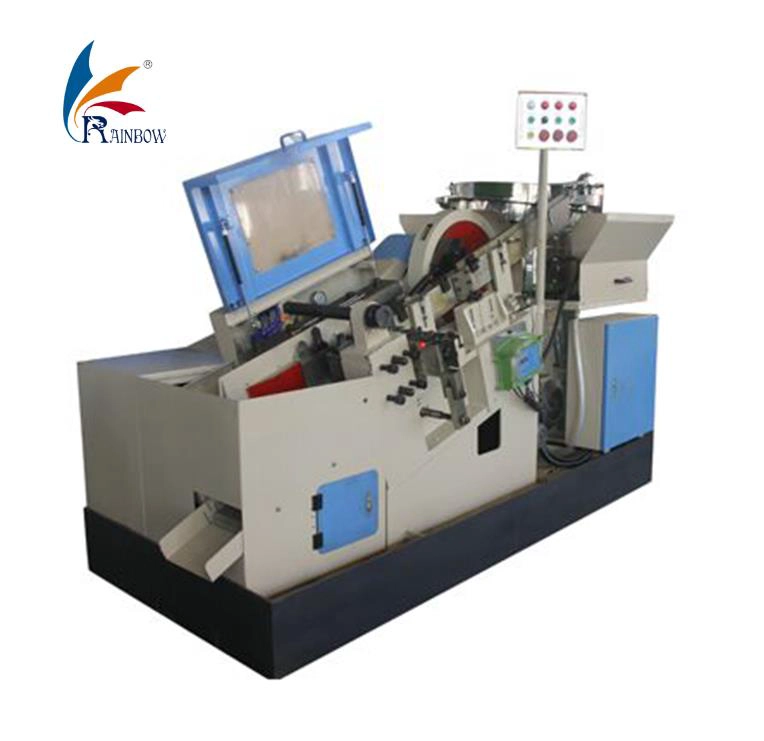

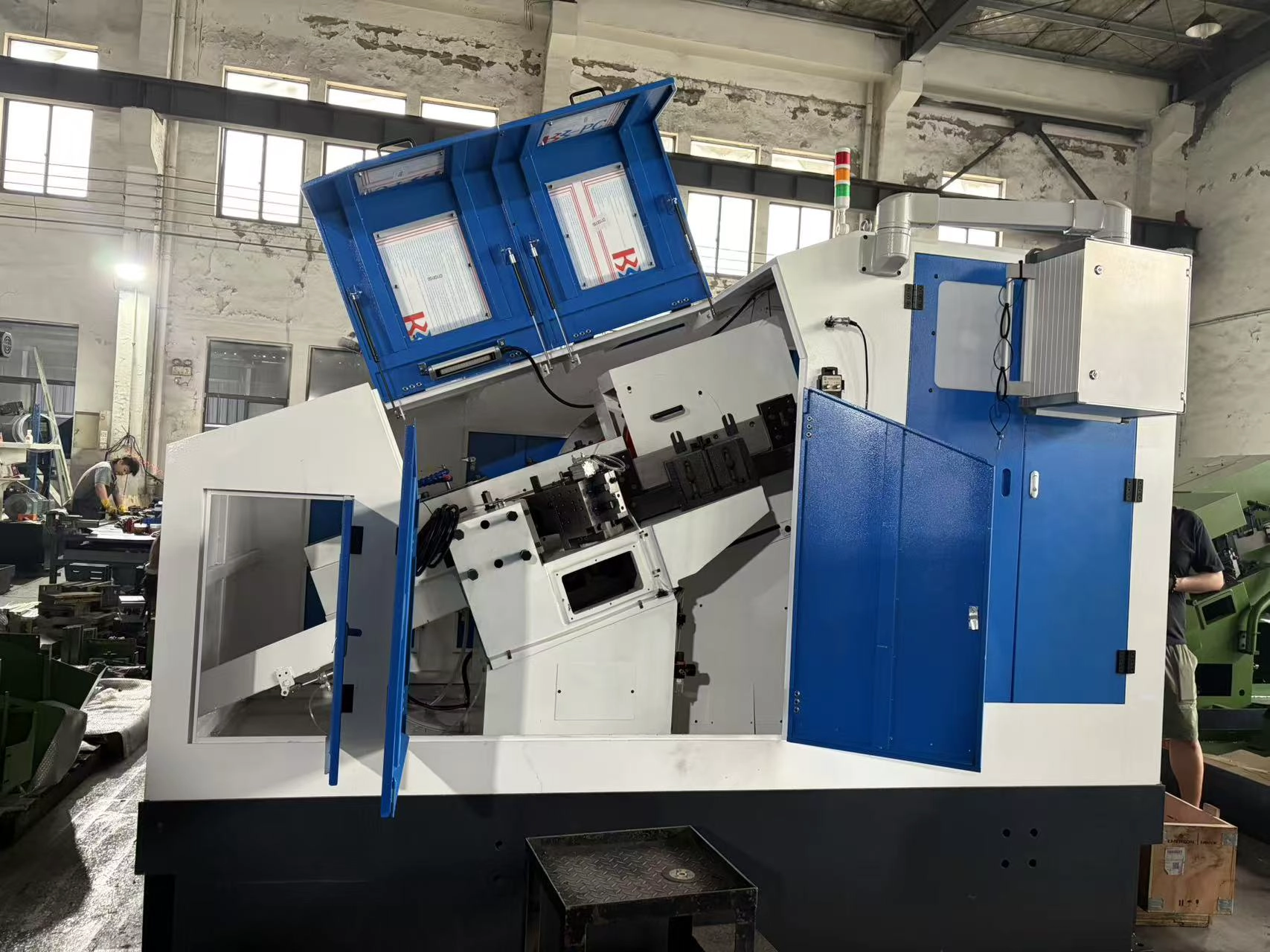

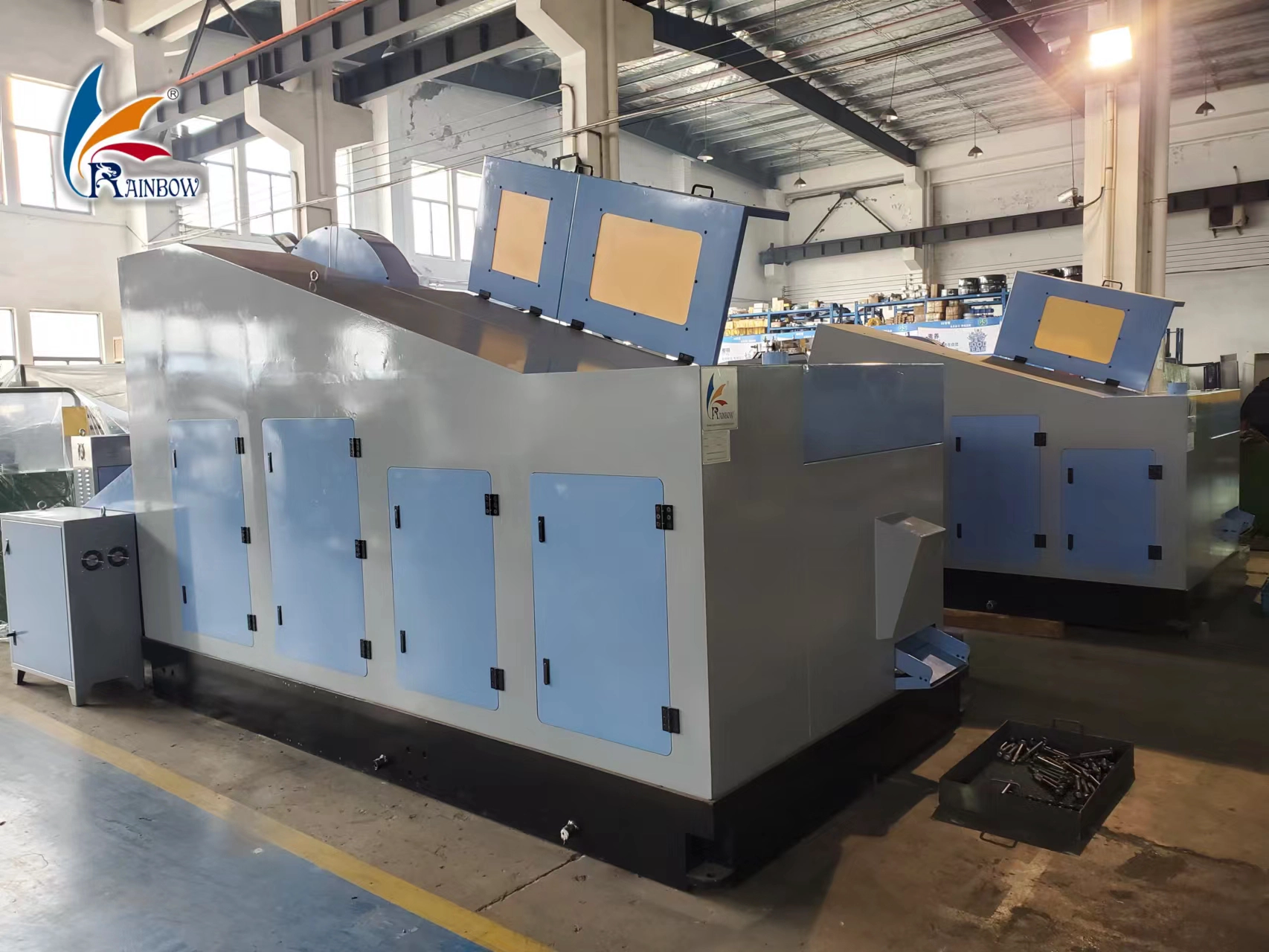

High Speed Automatic Flat Die Thread Rolling Machine CY Series for Screw Bolt Stud Fastener Manufacturing

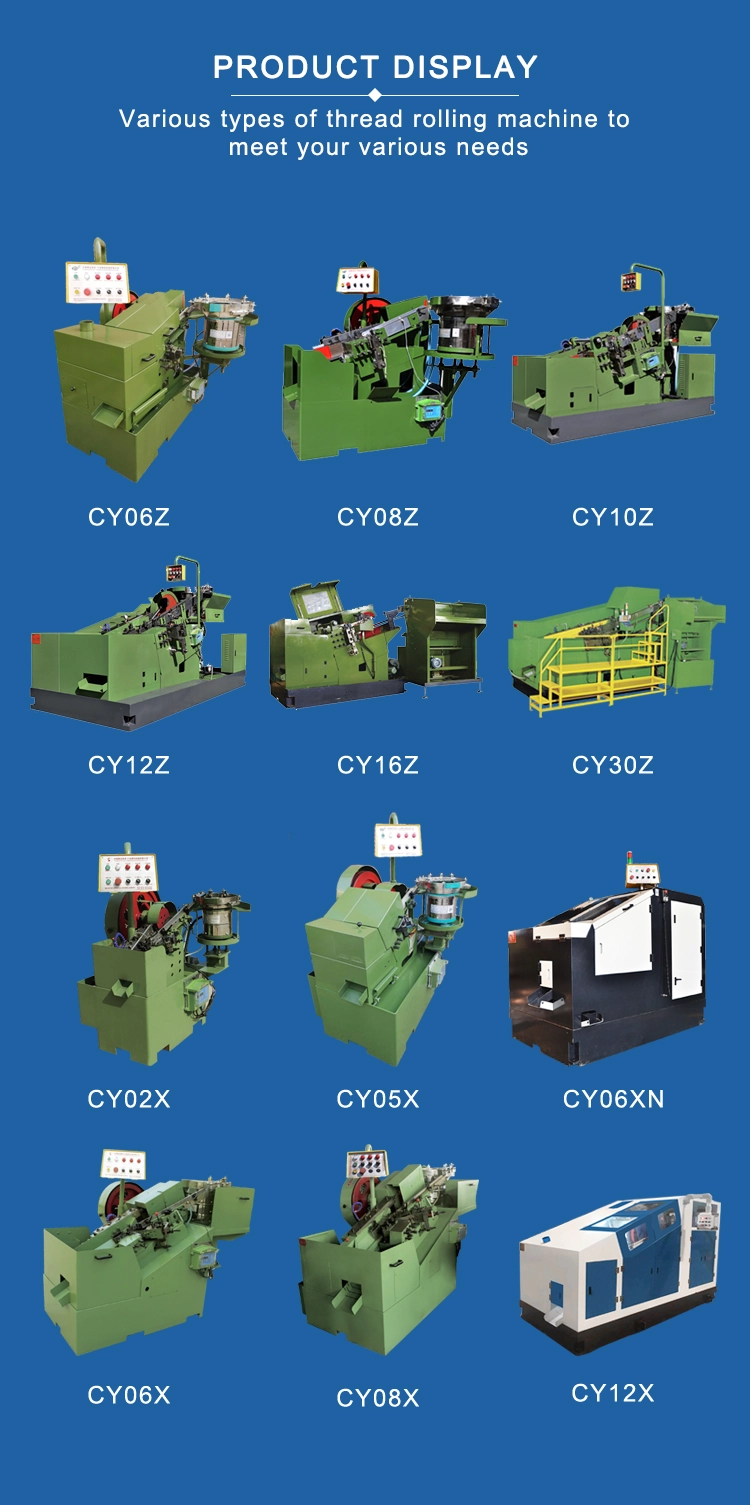

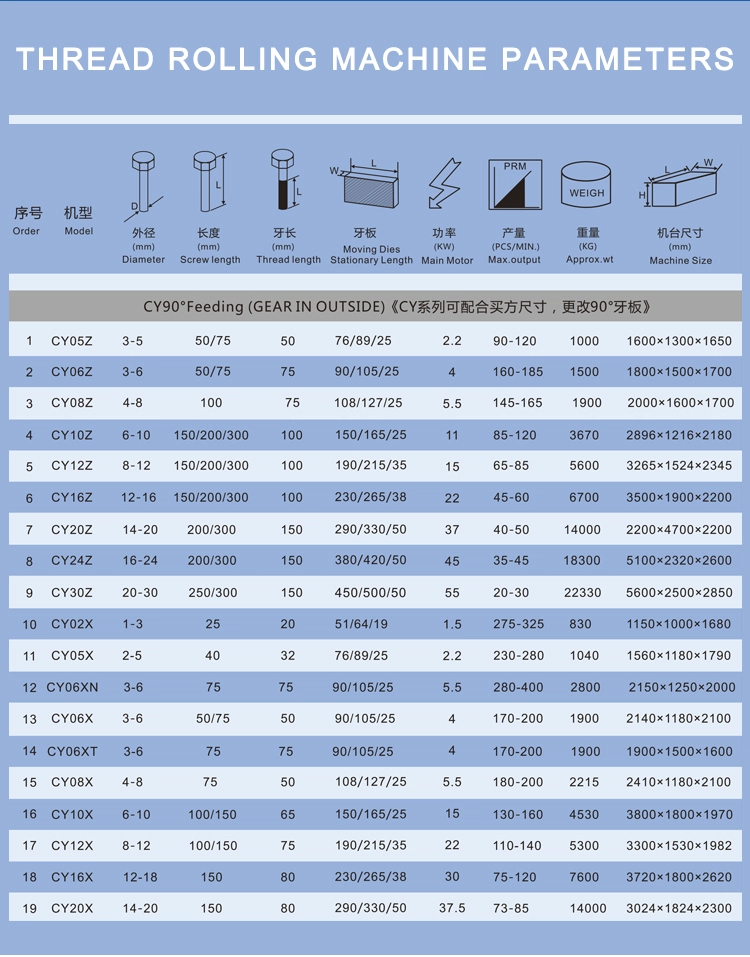

- Model: CY Series (CY05X / CY06Z / CY08Z / CY16Z, customizable)
- Processing Diameter Range: M1 – M16 (1 – 16 mm)
- Max. Effective Thread Length: 25 – 100 mm (subject to specific model)
- Production Speed: 150 – 320 pieces per minute
- Main Motor Power: 2.2 – 7.5 kW
- Power Supply: 380V / 415V / 480V 3-Phase 50/60Hz (customizable)
- Forming Process: Flat die chipless cold thread rolling
- Automation Grade: Fully automatic with vibratory bowl feeding system
- Core Components: PLC control system, precision alloy thread dies, heavy-duty gearbox, centralized lubrication unit
- Applicable Thread Standards: ISO, DIN, ANSI, JIS, GB
- Applicable Materials: Carbon steel, stainless steel, copper, aluminum alloy
- Machine Net Weight: 830 – 2800 kg (varies by model)
- Warranty: 12 months for main machine body
