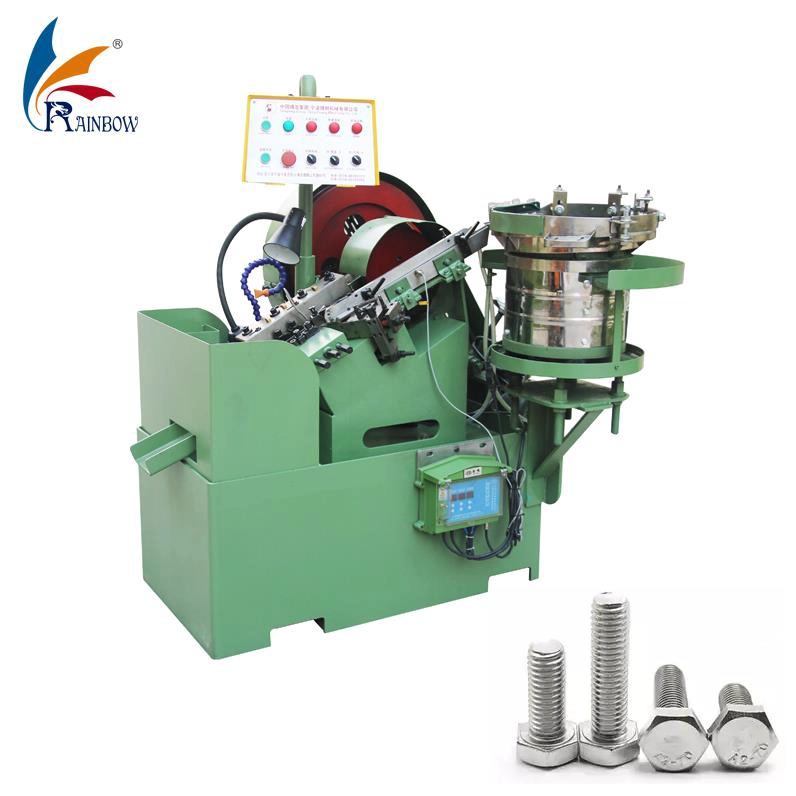

Full Automatic High Speed Flat Die Thread Rolling Machine 2-6mm for Screw Bolt Stud Fastener Manufacturing
- Processing Diameter Range: 2 – 6 mm
- Max. Effective Thread Length: 50 mm
- Production Speed: 150 – 300 pieces per minute
- Main Motor Power: 5.5 kW
- Power Supply: 380V / 415V / 480V 3-Phase (customizable)
- Process Type: Cold flat die thread rolling (chipless forming)
- Automation Grade: Fully automatic with vibratory bowl feeding system
- Core Components: PLC controller, precision gearbox, alloy thread dies, heavy-duty bearings
- Applicable Thread Standards: ISO, DIN, ANSI, JIS, GB
- Machine Net Weight: Approx. 1800 kg
- Warranty: 12 months for main machine body
