Six Die Nut and Part Forging MachineSix Die Nut and Part Forging MachineSix Die Nut and Part Forging MachineSix Die Nut and Part Forging MachineSix Die Nut and Part Forging Machine

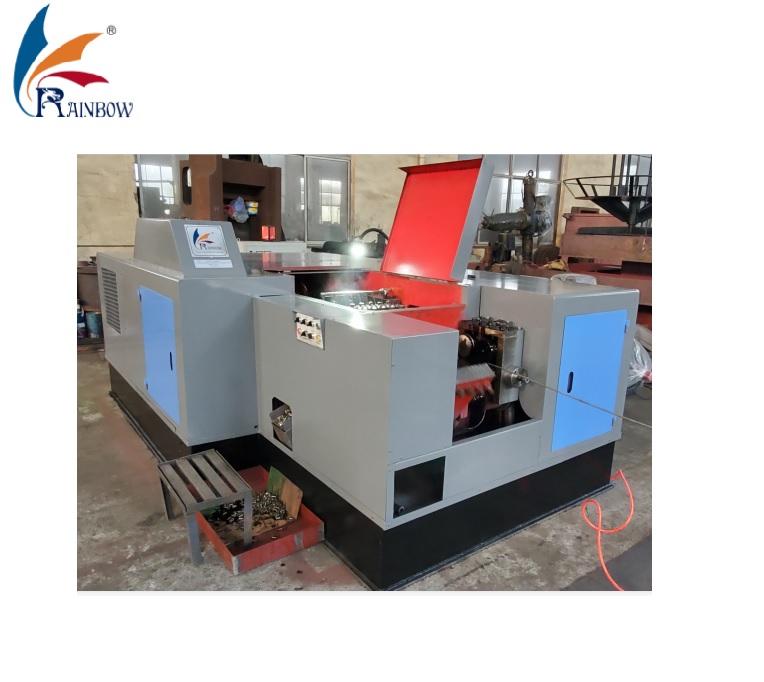

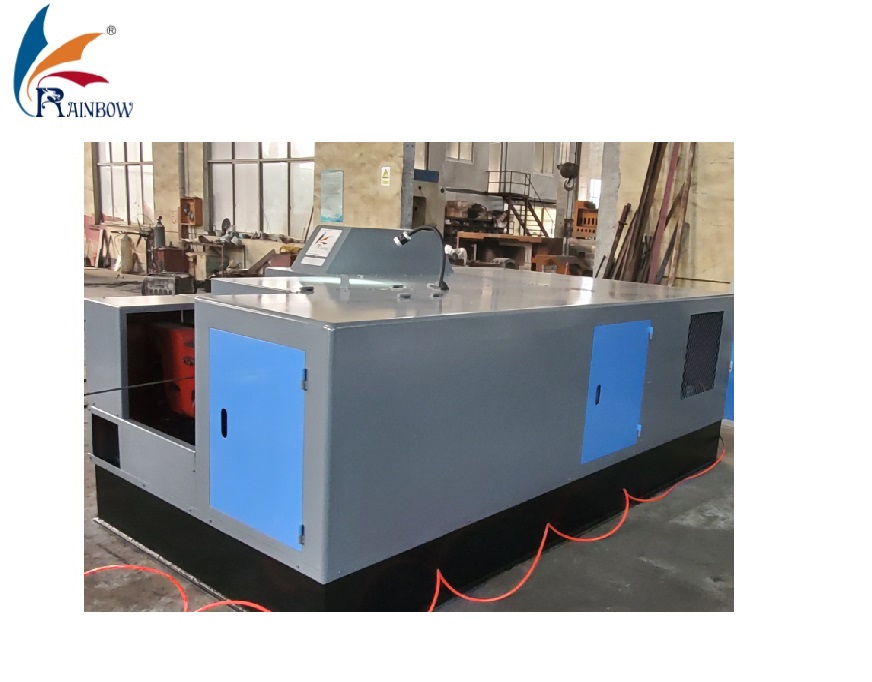

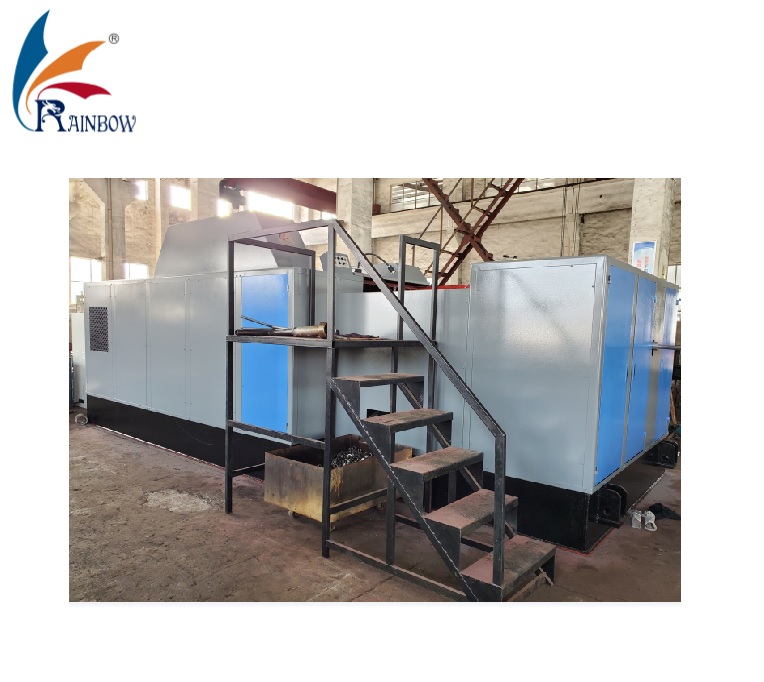

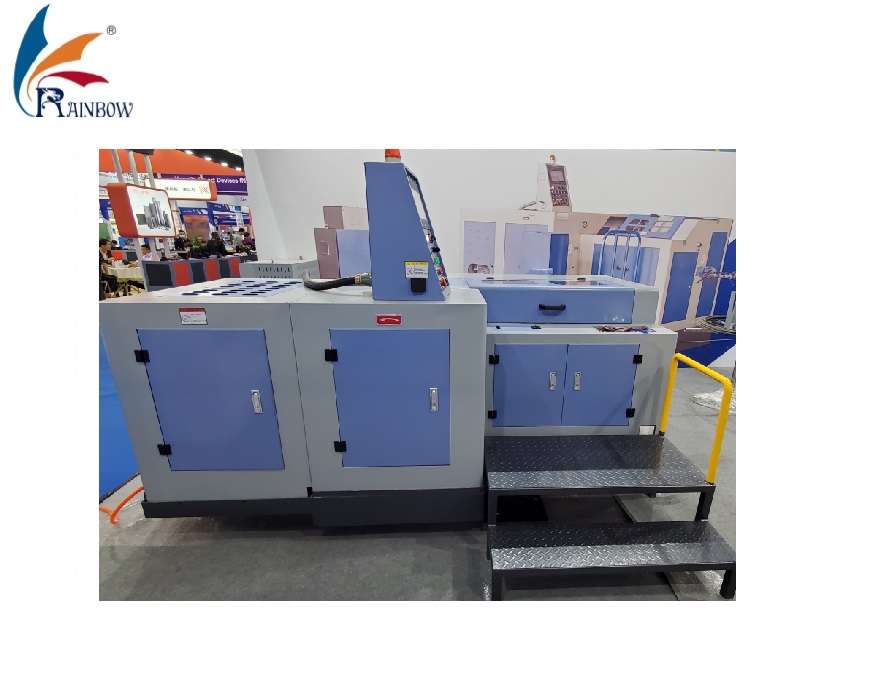

Six Die Nut and Part Forging Machine

  • Forging station:Six
  • Product size:M3-M30
  • Max. forging dia:33MM
  • Max.cut off dia:30MM
  • Max.forging length:80MM
  • Max.Die pitch:140MM
  • Slider stroke:280MM

Production Items:

Extra thick nut, Flanged nut, Motorcycle link pin, Oil Plug screw, Hex socket lockup nut, Squire nut, Weld nut, Cap nut, Blind Nut, Chain roller, Expansion anchor, Bicycle and Motorcycle shaped Spare Parts, etc.

MODEL FORGING STATION MAX. FORGING DIA.(mm)  CUT-OFF DIA. (mm) PRODUCT SIZE  FORGING LENGTH (mm) DIE PITCH (mm) SLIDER STROKE (mm) OUTPUT (per.min.)  MAIN MOTOR (HP)  WEIGHT (T)  DIMENSION (cm)
JXR08B-6S-12 6 8 8 M4-M5 12 38 40 175/350 10 3.5 195×135×130
JXR11B-6S-14 6 11 10 M5-M6 14 50 60 120/240 15 4.3 230×155×135
JXR11B-6SL-20 6 11 10 M5-M6 20 50 65 110/200 20 4.5 230×155×135
JXR11B-6SL-35 6 11 10 M5-M6 35 50 125 110 20 4.5 230×155×135
JXR14B-6S-18 6 15 14 M6-M8 18 60 70 75/160 20 8 300×195×175
JXR14B-6SL-30 6 15 14 M6-M8 30 60 100 85/160 30 8 300×198×175
JXR14B-6SL-50 6 15 14 M6-M8 50 60 160 85 30 8.5 300×198×175
JXR17B-6S-20 6 17 17 M8-M10 20 70 80 65/130 20 10 350×220×185
JXR17B-6SL-50 6 17 17 M8-M10 50 70 160 80 40 10.5 360×220×185
JXR17B-6SL-70 6 17 17 M8-M10 70 70 220 80 50 10.5 360×220×185
JXR19B-6S-25 6 20 19 M10-M12 25 80 95 95 40 10.5 360×220×185
JXR19B-6SL-50 6 20 19 M10-M12 50 80 160 75 50 16 380×245×196
JXR19B-6SL-70 6 20 19 M10-M12 70 80 220 65 60 16 380×235×196
JXR22B-6S-30 6 22 22 M12-M14 30 80 160 80 60 18 380×235×196
JXR22B-6SL-60 6 22 22 M12-M14 60 80 220 75 60 18 380×235×196
JXR24B-6S-35 6 24 24 M14-M16 35 100 160 75 75 27.5 550×248×270
JXR24B-6SL-70 6 24 24 M14-M16 70 100 210 65 75 27.5 550×248×270
JXR27B-6S-40 6 27 29 M16-M18 35 100 160 75 100 30 550×248×270
JXR27B-6S-70 6 27 29 M16-M18 70 100 210 65 150 30 550×248×270
JXR33B-6SL-40 6 33 30 M18-M20 35 140 160 70 150 45 650×300×280
JXR33B-6SL-80 6 33 30 M18-M20 80 140 280 60 200 50 650×300×280

Production Items:
