Tri-Metal Rivet Contact MachineTri-Metal Rivet Contact Machine

Tri-Metal Rivet Contact Machine

  • Motor Power:3Kw
  • Machine Power:3.6Kw
  • Power Supply:380v50hz
  • Net Weight:1800kgs
  • Transducer:5.5Kw
  • Dimension(LxWxH): 1530x1020x1420mm
  • Head Dia:2-8
  • Head Thickness: Max3
  • Output:4000-8000pcs/h

the machine can make tri-metl rivet. With high efficency and good quality.

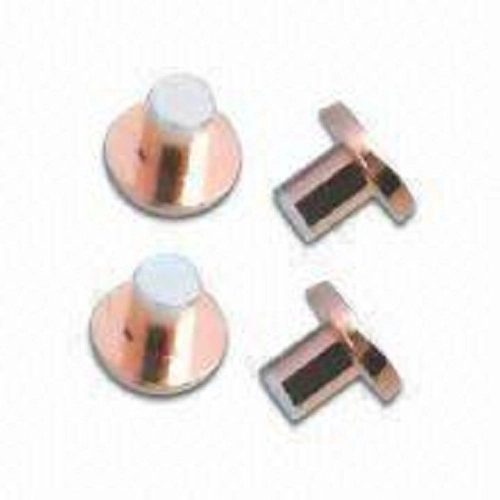

Trimetal Composite Contact Cold Header can make six different metals be compounded together under cold state to produce composite contacts according to the technique requirements. Its working process includes the following steps: Sending two different kinds of metal wire into the machine firstly, transmitting them into the mould after being cut off. Then by two times upsetting process, the two kinds of metal become the composite contacts. Finally, the products retreat from the mould and enter into the finished product box.
