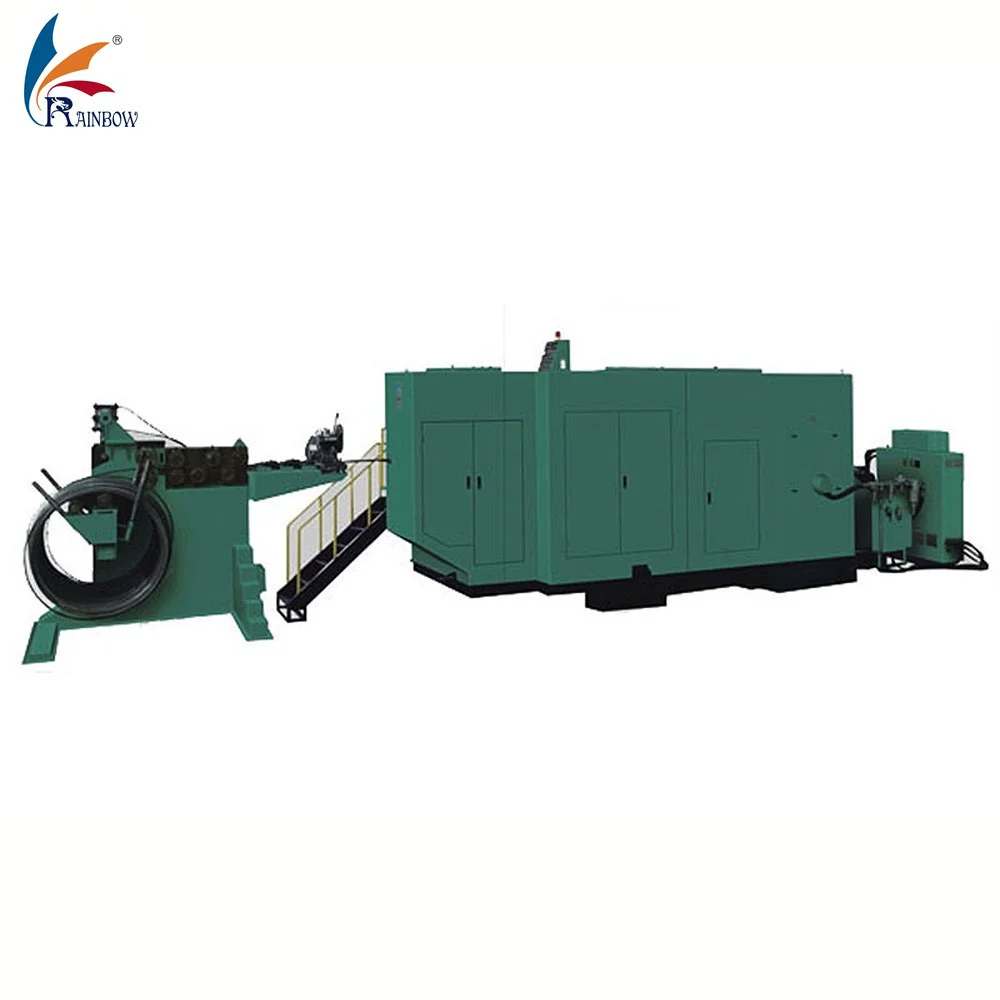

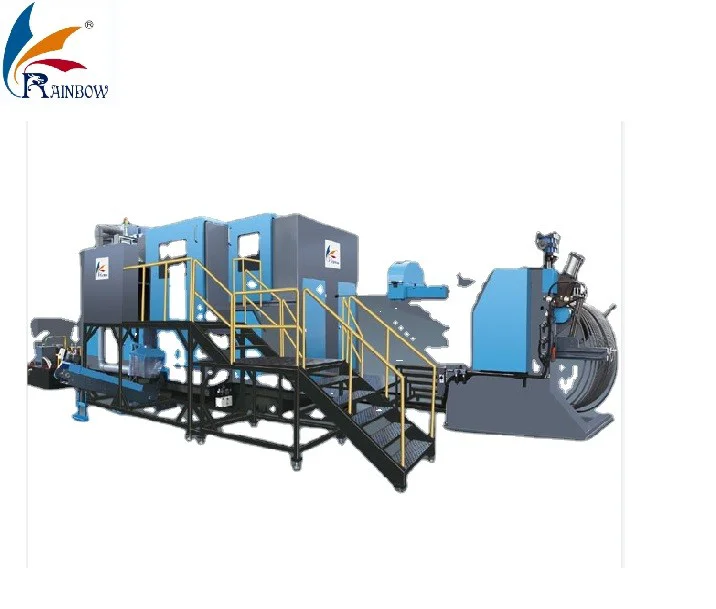

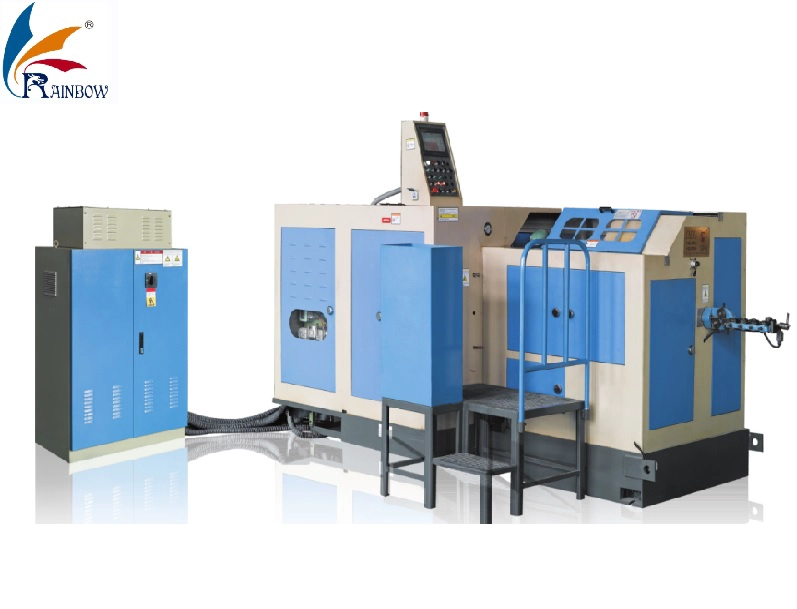

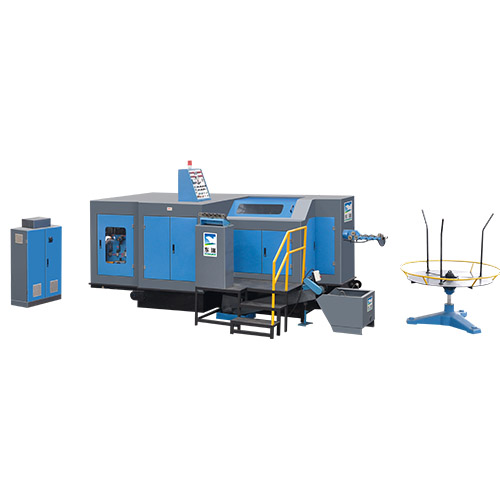

cold forging machine supplier china

  • MODEL RBF-84S
  • FORGING STATION(NO) 4
  • CUT-OFF DIA.(mm) Ø10
  • CUT-OFF LENGTH (mm) 115
  • OUTPUT RATE (pcs/min) 120-180
  • MAIN MOTOR POWER(kw) 22
  • APPROX.WEIGHT(T) 14
  • APPLICABIE BOLT DIA(mm) 5-8
  • SHANK LENGTH OF BLANK (mm) 15-90

Product Description:

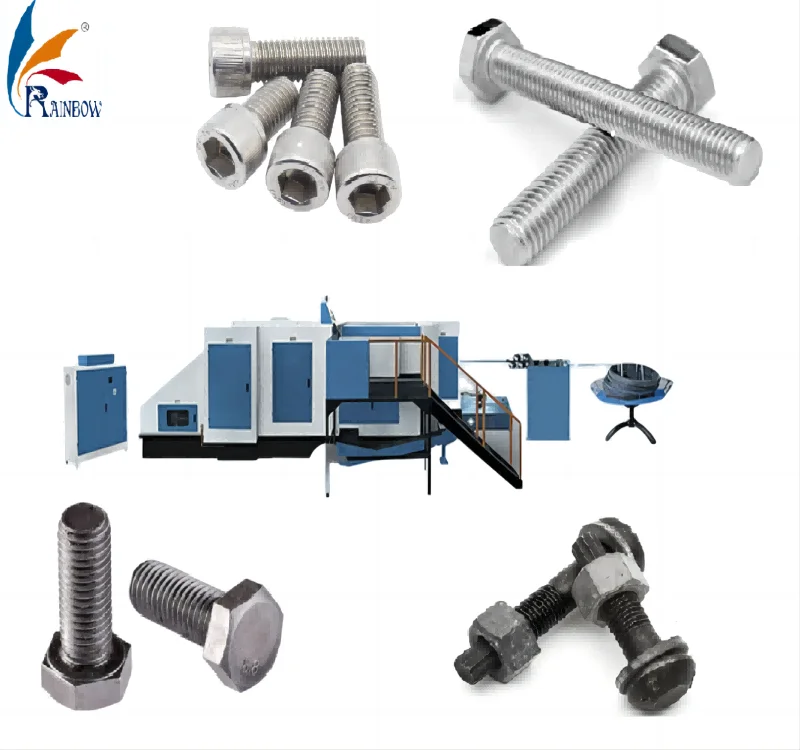

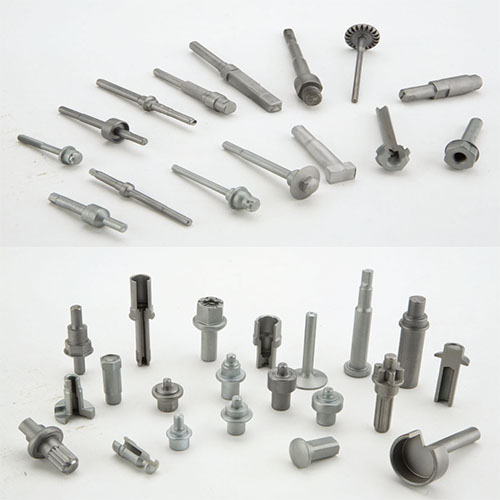

Auto Multi-station Cold forging fomer is a specialized machine tool with high efficency and automation among forging machinery. Cold forging fomers are used as an important means for producing different kinds of bolts, screws, rivets and nuts in the field of fastener industry. The formers are also widely used in different national economic territories for producing fasteners and abnormal non-standard parts such as aviation,steamer,machinery, rail traffic, vehicle,motorcycle,bicycle,sewing machine, construction,furniture, light industry and daily necessities, etc.

MODEL RBF-84S RBF-104S RBF-104L RBF-134L RBF-134L RBF-134LL RBF-164S RBF-204L RBF-254S
FORGING STATION(NO) 4 4 4 4 4 4 4 4 4
FORGING FORCE(KGS) 60 80 80 120 120 120 210 350 430
CUT-OFF DIA.(mm) Ø10 Ø12 Ø12 Ø15 Ø15 Ø15 Ø18 Ø23 Ø28
CUT-OFF LENGTH (mm) 115 135 185 190 265 285 195 240 253
OUTPUT RATE (pcs/min) 120-180 90-140 80-130 75-110 50-80 50-80 70-100 55-80 40-70
P.K.O STROKE(mm) 18 20 30 40 40 40 40 46 40
K.O.STROKE (mm) 92 118 160 175 225 280 178 220 205
MAIN RAM STROKE (mm) 160 190 262 270 380 380 260 346 330
MAIN MOTOR POWER(kw) 22 30 30 37 37 37 55 75 90
OVERALL DEMS.OF CUT OFF DIE Ø50x50L Ø45x59L Ø45x59L Ø63x69L Ø63x69L Ø63x69L Ø60x90L Ø75x120L Ø80x130L
OVERALL DEMS.OF PUNCH DIE Ø45x125L Ø53x115L Ø53x115L Ø60x130L Ø60x229L Ø60x229L Ø75x185L Ø90x215L Ø120x270L
OVERALL DEMS.OF MAIN DIE Ø60x130L Ø75x135L Ø75x185L Ø86x190L Ø86x305L Ø86x305L Ø100x190L Ø125x240L Ø140x250L
DIE PITCH(mm) 70 90 94 110 110 110 120 140 160
APPROX.WEIGHT(T) 14 18 21 28 33 38 45 62 105
APPLICABIE BOLT DIA(mm) 5-8 6-10 6-10 8-12.7 8-12.7 8-12.7 10-16 12-20 14-25.4
SHANK LENGTH OF BLANK (mm) 15-90 15-110 20-152 20-160 40-220 75-262 20-160 25-200 外六35-200.内六35-180

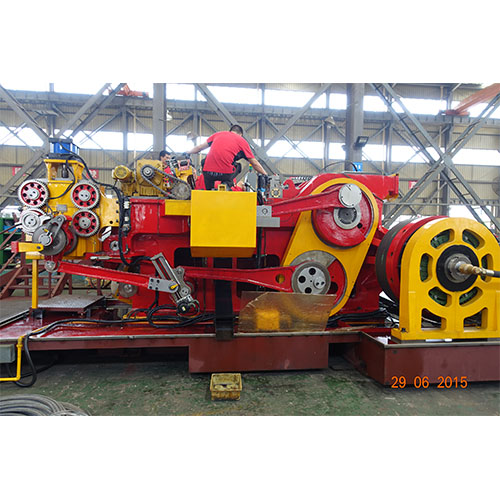

Workshop View:
