Bolt Making Machine Supplier

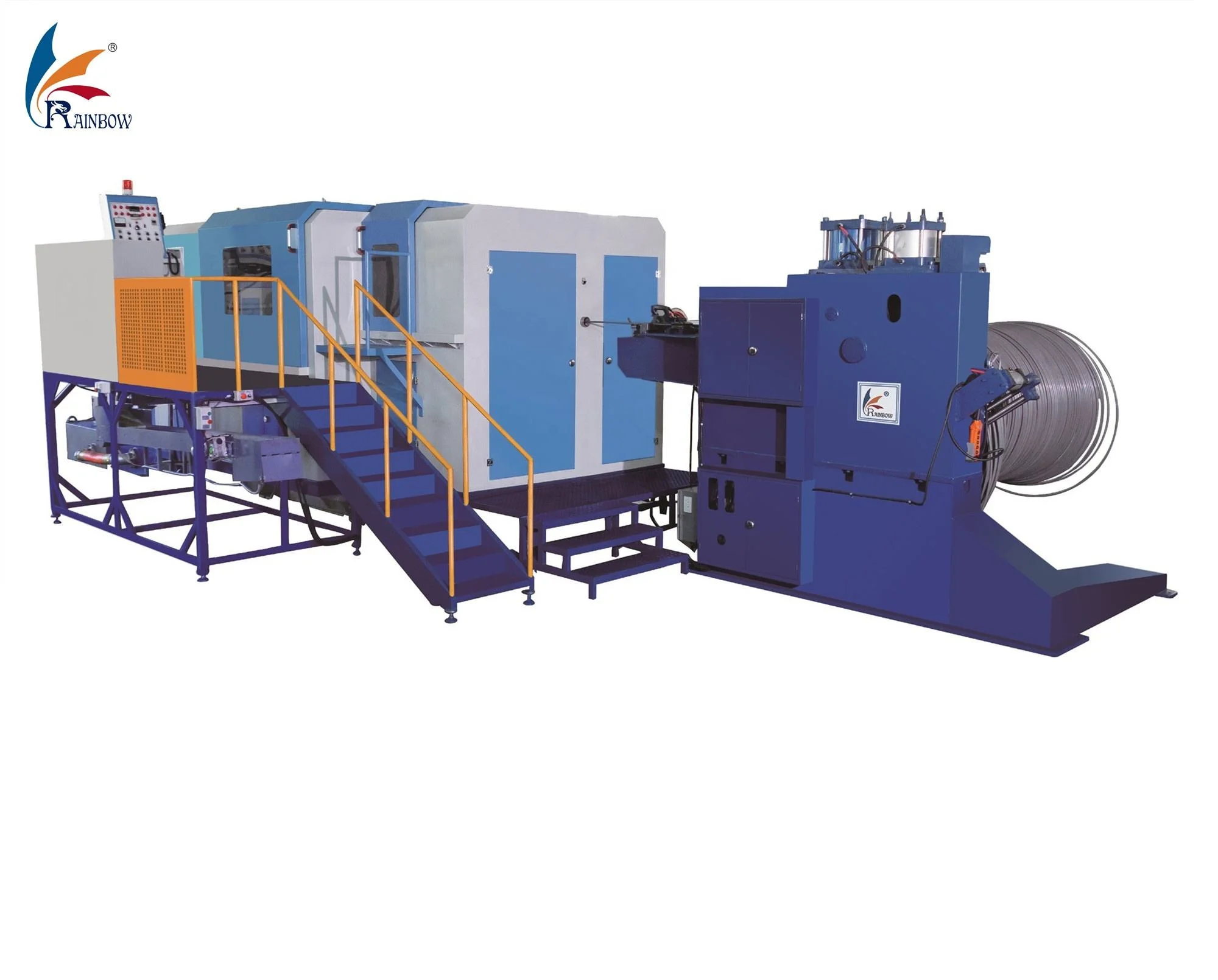

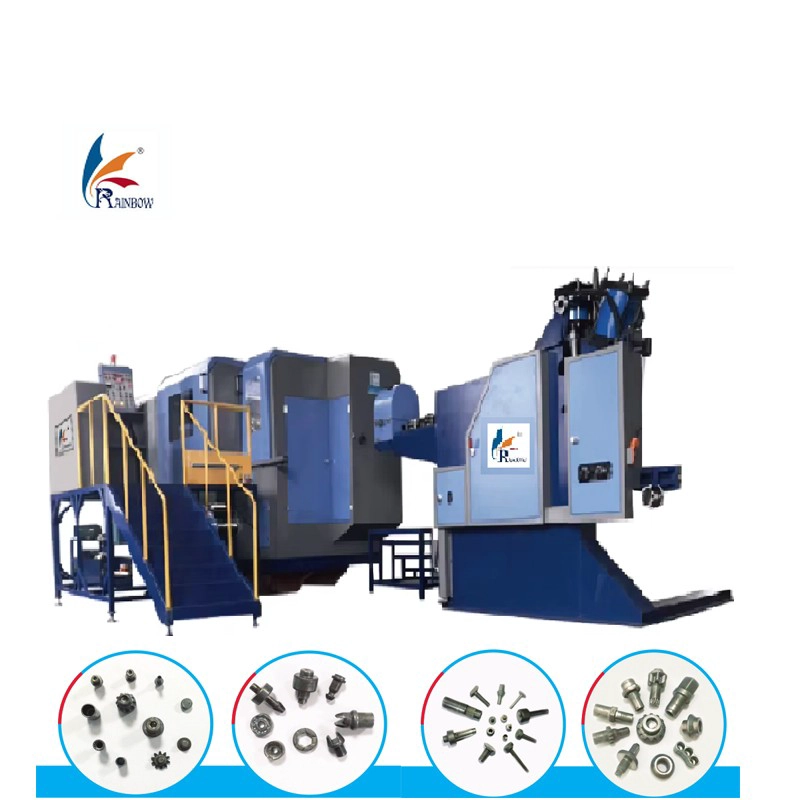

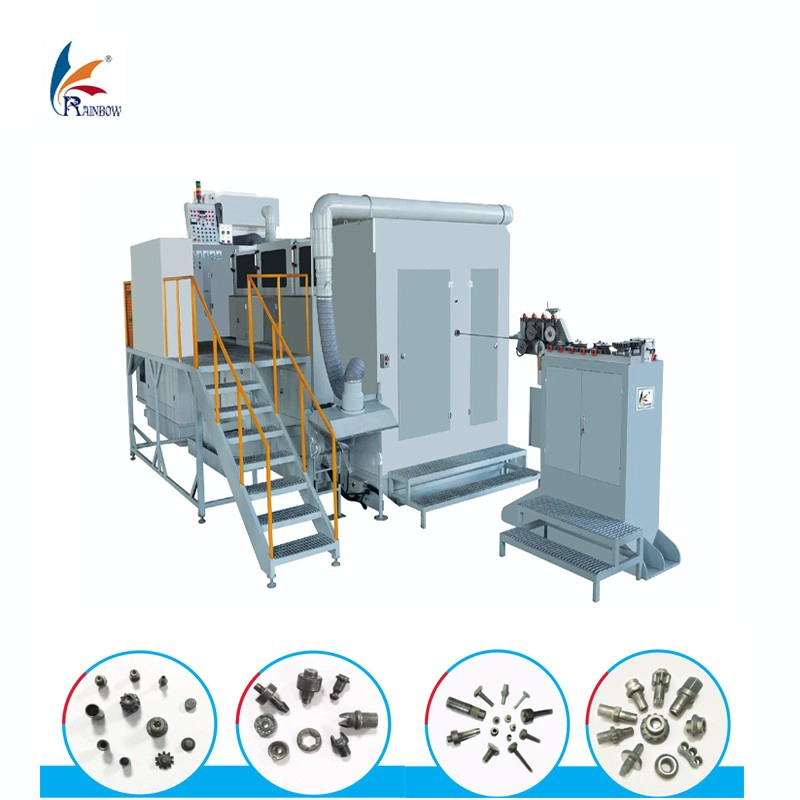

> 4 Station High Speed Automatic Cold Forming Machine/ M12-M25.4 Bolt Machine
- Browse Categories
- Bolt Making Machine Supplier
- Thread rolling machine supplier
- Nut Making Machine Supplier
- Nut tapping machine China Suppliers
- Heat Treatment Furnace
- Zinc plating production line solution
- Colding Heading Machine suppliers
- two die four blow cold forging machine
- Three die six blow cold forging machine
- wire drawing machine
- Round type thread rolling machine
- Washer assembling machine
- Spring washer making machine
- Bi-metal Rivet machine
- Optical sorting machine
- packing machine
- Pipe bending machine
- Automatic Knurling Machine
- Bolt end cutting machine
- Automatic nut slotting machine
- die tooling
- Taps tapping tooling
- Cash Counting Machine
- Punch accessories
- Nylon washer assembly machine
- Hot Dip Galvanizing Line
- Subscribe
-
Get email updates on new products
- Certifications
-
- New Products
- Contact Us
- Harbin Rainbow Technology Co., Ltd.Address:C2-02 Handi Building,Songbei Distr.,Harbin,ChinaPostal Code:150028Web site address:http://www.fastenerequip... Contact Now
- News
-
What is Cold Forging – Cold Forging Process, Materials, Uses, Advantages & Disadvantages
Working principle of nut tapping machine
Nut tapping machine is a kind of machining equipment that processes internal threads, screws or teeth buckles on the inner side of the holes of variou...Difference between hot dip zinc and hot dip galvanising
Hot-dip zincing and hot-dip galvanising are two different processes for corrosion protection of metals, with hot-dip zincing usually providing better ...Tightening bolts can not be ignored friction can cause problems to solve the problem
fortensionbolt, The friction force is a factor to be reckoned with. Bolt friction joint has been in existence, it may be part of the reason that cause...Thread Rolling
The Complete Guide to Zinc Plating: All You Need To Know
High speed installation cold forging machine bolts and nuts making machine for screw
What's self-tapping screw?
Self-tapping screws: similar to machine screws, but the threads on the screw for special self-tapping screws with threads. Used to fasten the connecti...Analysis of the principle and function of spring washers
In all kinds of mechanical connections, the anti-loosening of bolts is a very important link, and there are many ways to prevent loosening of bolts in...What Is Cold Forming?
|
Model |
Unit |
RBF-204L |
RBF-254SL |
|
Forging force |
Kgs |
380,000 |
450,000 |
|
Max cut-off dia |
mm |
23 |
26 |
|
Max cut off length |
mm |
240 |
255 |
|
Speed range |
pcs/min |
50-80 |
40-70 |
|
P.K.O Stroke |
mm |
45 |
35 |
|
K.O stroke |
mm |
220 |
215 |
|
Main slide stroke |
mm |
346 |
330 |
|
Main motor |
kw |
75 |
110 |
|
Cut-off die size |
mm |
75*120L |
80*130L |
|
Punch die size |
mm |
90*215L |
120*270L |
|
Main die size |
mm |
125*240L |
140*250L |
|
Die pitch |
mm |
140 |
160 |
|
Main weight |
kgs |
62,000 |
103,000 |
|
Normal bolt size |
mm |
12-20 |
14-25.5 |
|
Shank length of blank |
mm |
25-200 |
35-200 |
