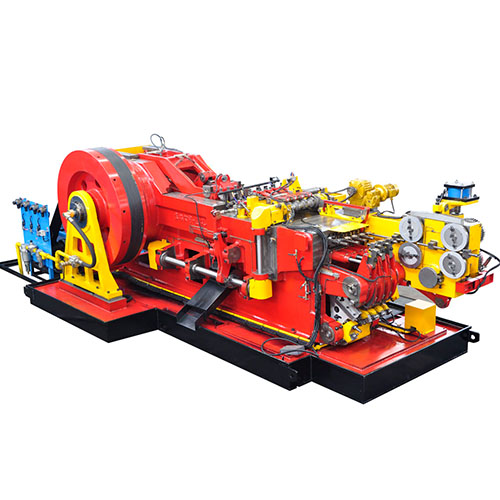

5 stations bolt making cold forging machine China supplier
- MODEL RBP-165S
- FORGING STATION(NO) 5
- FORGING FORCE(KGS) 220
- CUT-OFF DIA.(mm) Ø23
- CUT-OFF LENGTH (mm) 190
- OUTPUT RATE (pcs/min) 55-95
- MAIN MOTOR POWER(kw) 55
- APPROX.WEIGHT(T) 52
- APPLICABIE BOLT DIA(mm) 10-16
- SHANK LENGTH OF BLANK (mm) 20-160
PRODUCT DESCRIPTION:
MODEL
RBP-165S
FORGING STATION(NO)
5
FORGING FORCE(KGS)
220
CUT-OFF DIA.(mm)
Ø23
CUT-OFF LENGTH (mm)
190
OUTPUT RATE (pcs/min)
55-95
P.K.O STROKE(mm)
45
K.O.STROKE (mm)
178
MAIN RAM STROKE (mm)
274
MAIN MOTOR POWER(kw)
55
OVERALL DEMS.OF CUT OFF DIE
Ø75x100L
OVERALL DEMS.OF PUNCH DIE
Ø75x185L
OVERALL DEMS.OF MAIN DIE
Ø108x200L
DIE PITCH(mm)
129
APPROX.WEIGHT(T)
52
APPLICABIE BOLT DIA(mm)
10-16
SHANK LENGTH OF BLANK (mm)
20-16
PACKING& SHIPPING
