China rainbow tech supply good price screw making machine for sale
- Place of Origin: China
- Application: Machinery & Hardware & Others
- Condition: New
- Video outgoing-inspection: Provided
- Machinery Test Report: Provided
- Marketing Type: Ordinary Product
- Warranty of core components: One Year
- Brand Name: Rainbow
- Voltage: 380V
- Warranty: One Year
- Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Other.
- Packaging Details: Plywood Cases
| Heading Machine | ||
| Model | RSH5-80 | |
| Max. Blank Diameter (mm) | 5 | |
| Max. Blank Length (mm) | 80 | |
| Max. Cut off Length (mm) | 95 | |
| Stroke (mm) | 110 | |
| Output (Pcs/Min) | 90-110 | |
| Main Die Diameter (mm) | Φ34.5X100 | |
| Punch Die Diameter (1st) (mm) | Φ31X75 | |
| Punch Die Diameter (2nd) (mm) | Φ31X75 | |
| Cut off Die Diameter (mm) | Φ19X35 | |
| Cutter Size (mm) | 10X35X72 | |
| Main Motor Power (KW) | 4.0HP/3.0KW | |
| Machine Size (L*W*H) (m) | 2.40X1.15X1.25 | |
| Approx Weight (Kgs) | 1850 | |
For more information, please leave a message, and I can give you detail introduction.

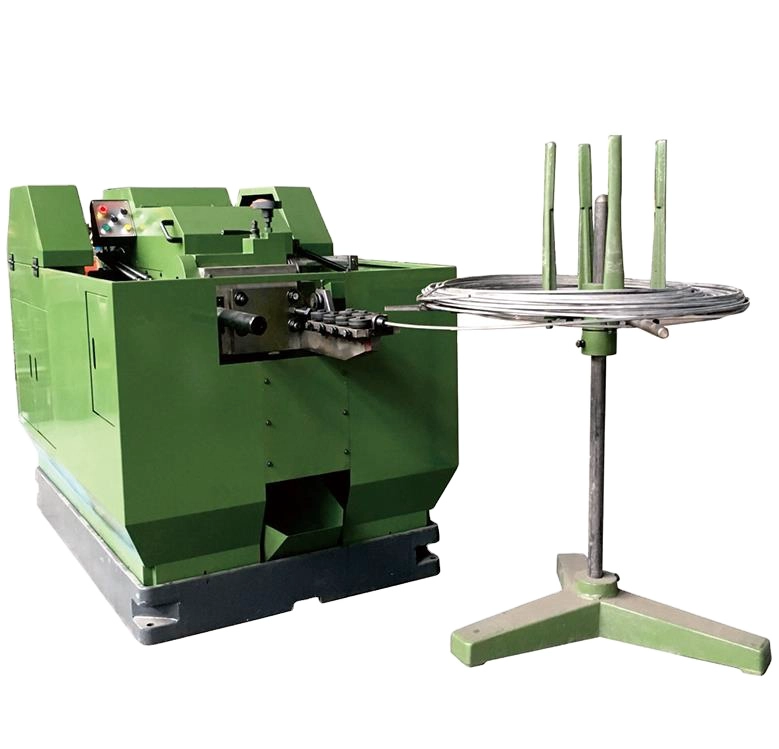

The head machine is a professional cold upsetting forming machine which is matched with automatic wire rolling machine in the whole plant of fastener industry.
Safety instructions
Its purpose is to the selected such as carbon steel, stainless steel, aluminum, copper and other metal wire, with appropriate mould, according to the allowable pressure wire than, under the effect of crankshaft connecting rod drive the slider, automated, fast after the required size of the wire will be automatically shear, extrusion in the mould for needed fastener head type, stem diameter, facilitate thread rolling, or become a qualified rivet type fastener. The heading machine automatically processes, the wire into semi-finished products.
The machine can produce Truss Head, Countersunk Head, Set Screw, Wood Screw, Chipboard Screw, Self Tapping Screw, Flat Head Hex Head, Pan Head, Hexagon Head, Socket Head, Button Head and so on.
Safety instructions
Its purpose is to the selected such as carbon steel, stainless steel, aluminum, copper and other metal wire, with appropriate mould, according to the allowable pressure wire than, under the effect of crankshaft connecting rod drive the slider, automated, fast after the required size of the wire will be automatically shear, extrusion in the mould for needed fastener head type, stem diameter, facilitate thread rolling, or become a qualified rivet type fastener. The heading machine automatically processes, the wire into semi-finished products.
The machine can produce Truss Head, Countersunk Head, Set Screw, Wood Screw, Chipboard Screw, Self Tapping Screw, Flat Head Hex Head, Pan Head, Hexagon Head, Socket Head, Button Head and so on.
