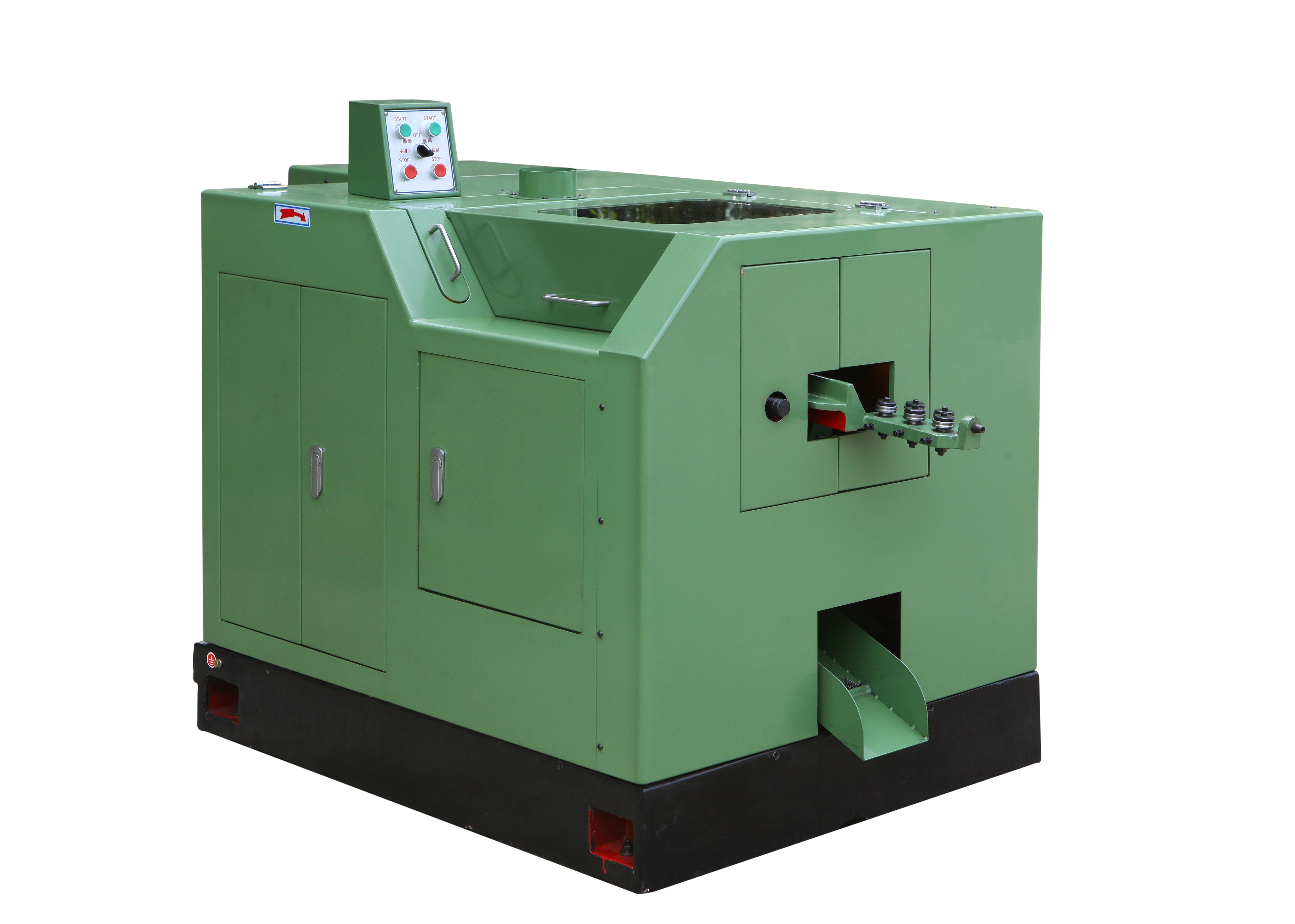

Cold Screw Header Fully Automatic Good Price Cold Heading Machine 1 Die 2 Blow Screw Machine
- Specification RSH10-120 RSH12-150
- Max blank Dia 10mm 12mm
- Max blank length 120mm 150mm
- Main slide Stroke 150mm 190mm
- Output(pcs/min) 50-60 40-50
- Main Die Dia(mm) Φ80×160 Φ80×200
- Cut off die Dia(mm) Φ40×50 Φ46×60
- Punch die(1 st) Φ55×150 Φ60×180
- Punch die(2 nd) Φ55×150 Φ60×180
- Main motor power 11kw 18.5kw
- Dimensions L*W*H(mm) 4800*1800*1700 5200*1900*1800
- Weight(kg) 8450 14000
|
Specification |
RSH10-120 |
RSH12-150 |
|
Max blank Dia |
10mm |
12mm |
|
Max blank length |
120mm |
150mm |
|
Main slide Stroke |
150mm |
190mm |
|
Output(pcs/min) |
50-60 |
40-50 |
|
Main Die Dia(mm) |
Φ80×160 |
Φ80×200 |
|
Cut off die Dia(mm) |
Φ40×50 |
Φ46×60 |
|
Punch die(1 st) |
Φ55×150 |
Φ60×180 |
|
Punch die(2 nd) |
Φ55×150 |
Φ60×180 |
|
Main motor power |
11kw |
18.5kw |
|
Dimensions L*W*H(mm) |
4800*1800*1700 |
5200*1900*1800 |
|
Weight(kg) |
8450 |
14000 |
