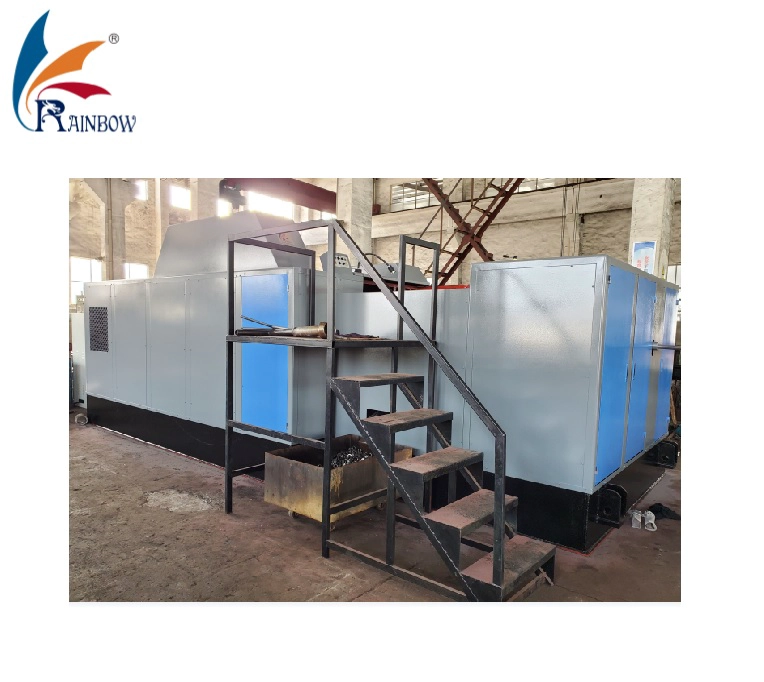

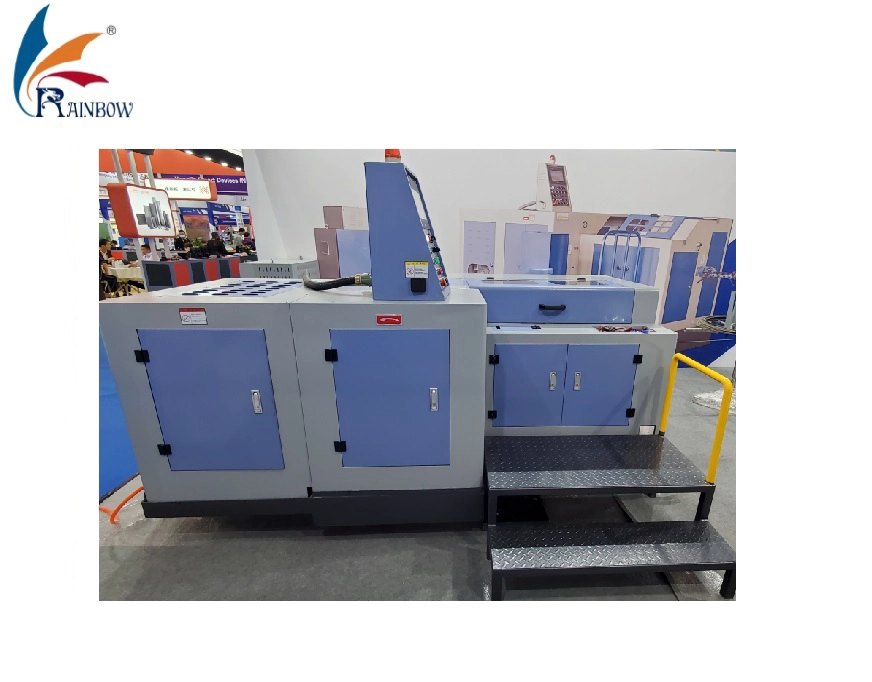

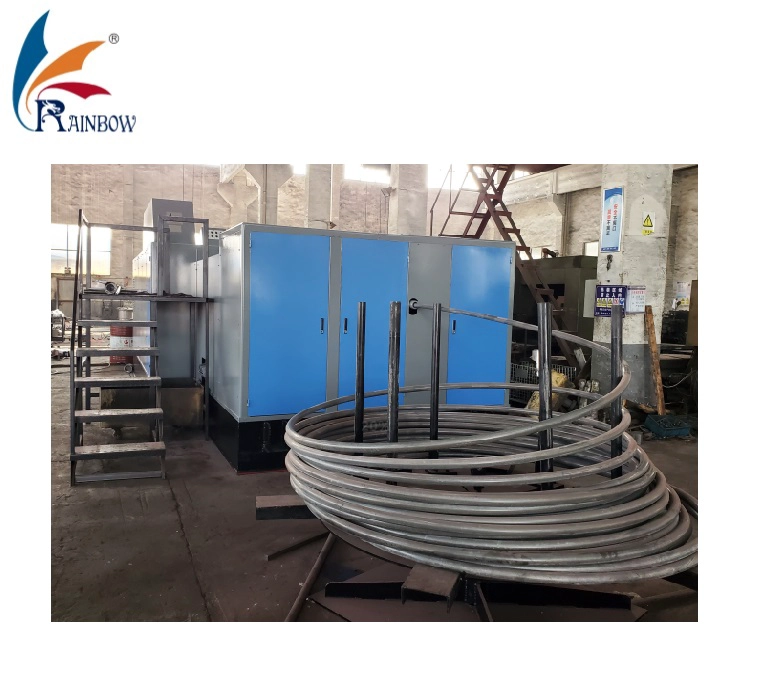

High speed 6/7 station nut former for hex flange nut makingHigh speed 6/7 station nut former for hex flange nut makingHigh speed 6/7 station nut former for hex flange nut making

High speed 6/7 station nut former for hex flange nut making

  • MODEL FORGING STATION MAX. FORGING DIA.(mm) CUT-OFF DIA. (mm) PRODUCT SIZE FORGING LENGTH (mm) DIE PITCH (mm) SLIDER STROKE (mm) OUTPUT (per.min.) MAIN MOTOR (HP) WEIGHT (T) DIMENSION (cm)
  • JXR08B-6S-12 6 8 8 M4-M5 12 38 40 175/350 10 3.5 195×135×130
  • JXR11B-6S-14 6 11 10 M5-M6 14 50 60 120/240 15 4.3 230×155×135
  • JXR11B-6SL-20 6 11 10 M5-M6 20 50 65 110/200 20 4.5 230×155×135
  • JXR11B-6SL-35 6 11 10 M5-M6 35 50 125 110 20 4.5 230×155×135
  • JXR14B-6S-18 6 15 14 M6-M8 18 60 70 75/160 20 8 300×195×175
  • JXR14B-6SL-30 6 15 14 M6-M8 30 60 100 85/160 30 8 300×198×175
  • JXR14B-6SL-50 6 15 14 M6-M8 50 60 160 85 30 8.5 300×198×175
  • JXR17B-6S-20 6 17 17 M8-M10 20 70 80 65/130 20 10 350×220×185
  • JXR17B-6SL-50 6 17 17 M8-M10 50 70 160 80 40 10.5 360×220×185
  • JXR17B-6SL-70 6 17 17 M8-M10 70 70 220 80 50 10.5 360×220×185
  • JXR19B-6S-25 6 20 19 M10-M12 25 80 95 95 40 10.5 360×220×185
  • JXR19B-6SL-50 6 20 19 M10-M12 50 80 160 75 50 16 380×245×196
  • JXR19B-6SL-70 6 20 19 M10-M12 70 80 220 65 60 16 380×235×196
  • JXR22B-6S-30 6 22 22 M12-M14 30 80 160 80 60 18 380×235×196
  • JXR22B-6SL-60 6 22 22 M12-M14 60 80 220 75 60 18 380×235×196
  • JXR24B-6S-35 6 24 24 M14-M16 35 100 160 75 75 27.5 550×248×270
  • JXR24B-6SL-70 6 24 24 M14-M16 70 100 210 65 75 27.5 550×248×270
  • JXR27B-6S-40 6 27 29 M16-M18 35 100 160 75 100 30 550×248×270
  • JXR27B-6S-70 6 27 29 M16-M18 70 100 210 65 150 30 550×248×270
  • JXR33B-6SL-40 6 33 30 M18-M20 35 140 160 70 150 45 650×300×280
  • JXR33B-6SL-80 6 33 30 M18-M20 80 140 280 60 200 50 650×300×280

Harbin Rainbow Technology Co.,Ltd is one of the biggest fastener equipment dealer and manufacturer in China. We have invested one Cold former factory(Ningbo), one Thread rolling machine factory(Ningbo), one Heat treatment furnace factory(Suqian) and one Electro plating equipment factory(Wuxi).

We have more than 30 years experiences in supplying all kinds of fastener equipment, such as Bolt Maker, Nut Maker, Cold Heading Machine, Thread Rolling Machine, Wire Drawing Machine, Heat Treatment Furnace and Zinc Plating line, etc. to customers all over the world,

With our reputation increasing and our team becoming more professional, we have experienced a significant growth in business during the recent years.Nowadays, more and more reputed companies compete in a long-term

cooperation with us.We abide by the principles of honesty, credibility, and mutual-benefit. Our motto is “ONCE BUSINESS, FOREVER FRIENDS”, we will do our best to serve clients at home and abroad. Due to our top-notch professional knowledge and rich trad experience, we have seen our market developing ability and actual business

growth with an increasingly faster pace. We sincerely look forward to working with you. Let's build a great future together!


Production Items:

Extra thick nut, Flanged nut, Motorcycle link pin, Oil Plug screw, Hex socket lockup nut, Squire nut, Weld nut, Cap nut, Blind Nut, Chain roller, Expansion anchor, Bicycle and Motorcycle shaped Spare Parts, etc.
