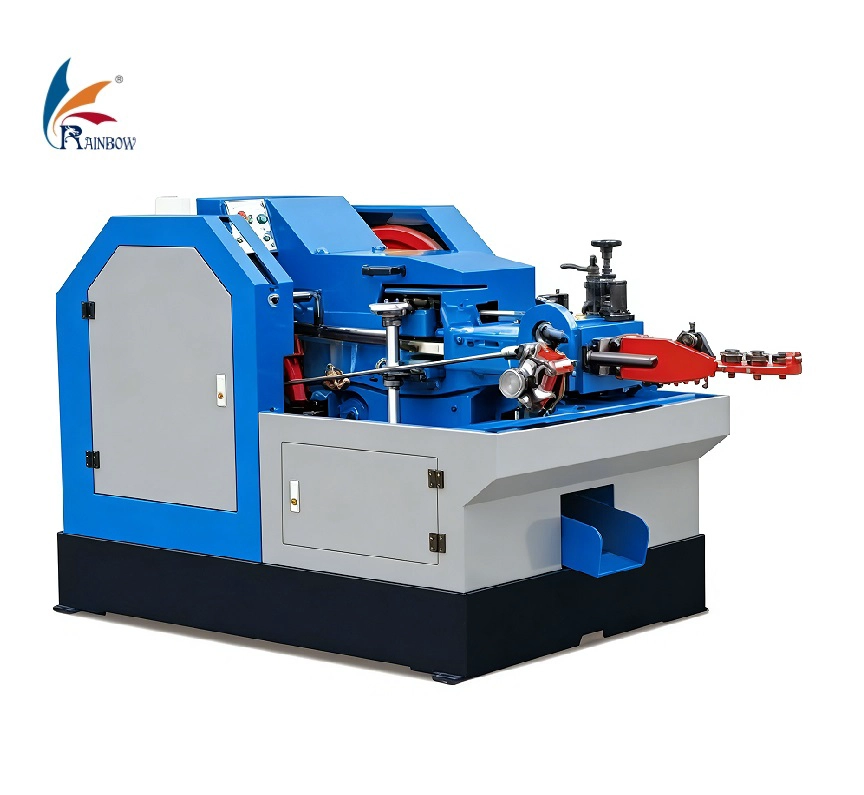

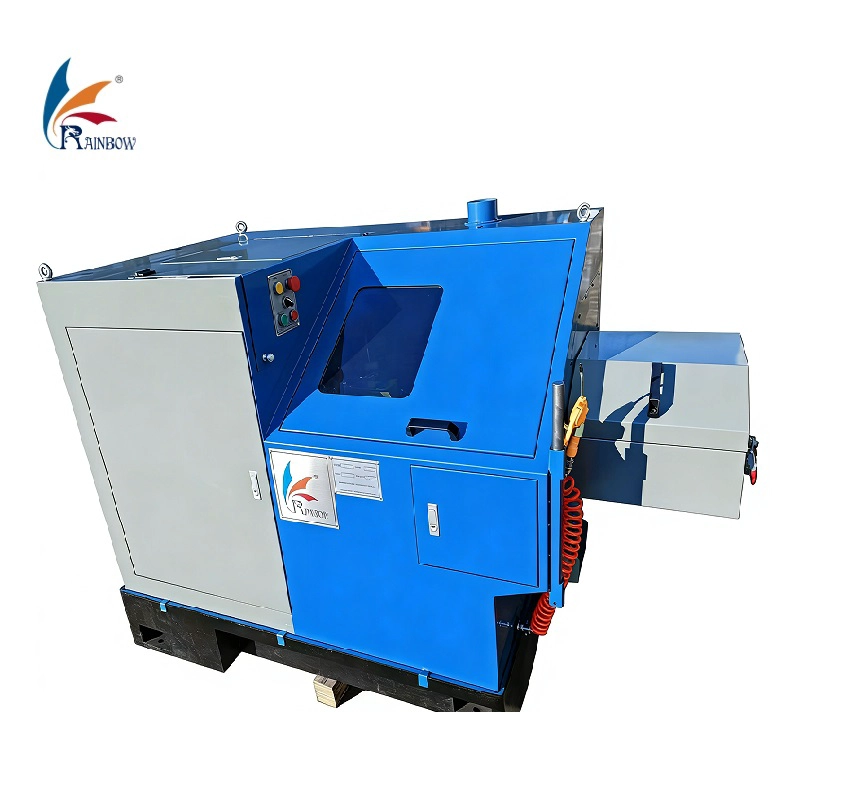

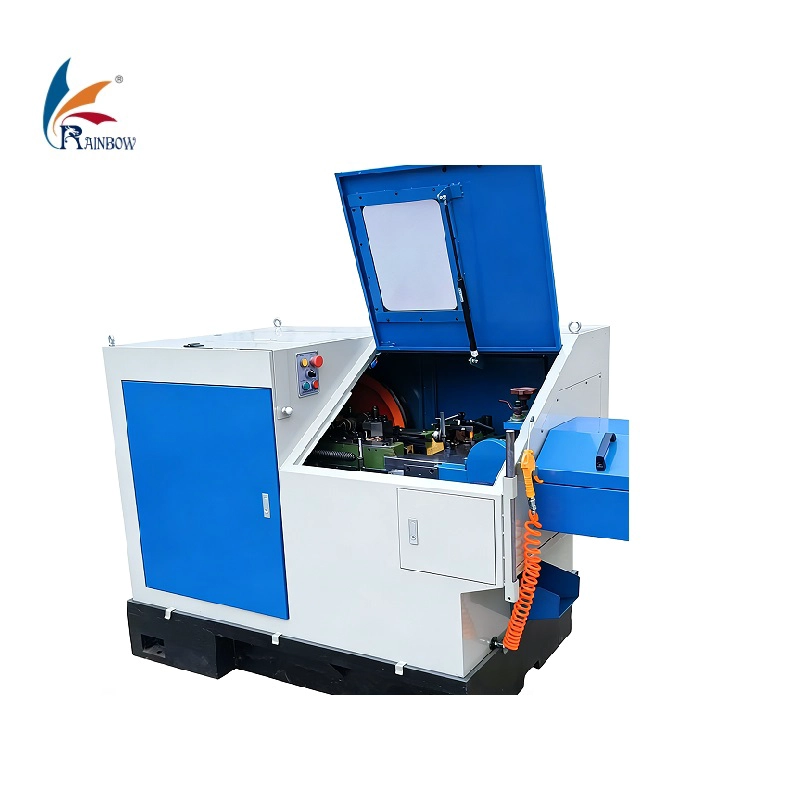

One die two blow screw heading machine for making drywall screws

Model RSH16-180
Max.cut off dia 16 mm
Max.blank length 180 mm
Max.cut-off length 210 mm
Stroke 240 mm
Outpout 35-40 pcs/min
Main Die dia Φ98x220mm
Initial puch die dia Φ65x180mm
Precise punch die dia Φ65x180mm
Cut off die dia Φ60x80mm
Cutter size 20x60x125
Main motor power 22KW
LxWxH 4.4x2.1x1.95m
Weight 20800kg

Machine overview

The heading machine is professional cold upsetting forming machine,which is matched with automatic thread rolling machine in the whole plant of making screws.

Its porpose is to the adopted such as carbon steel,stainless steel,alumium,copper and other matrial wire,with appropriate mould,according to the allowable pressure wire than,under the effect of crank-shaft connecting rod drive the slider,automated,fast after the required size of the wirewill be automatically shear,extrusion in the mould for needed fastener head type,stem diameter,facillate thread rolling ,or become a qualified rivet type fastener ,the heading machine automaticapply processes the wire into semi-finished products.
