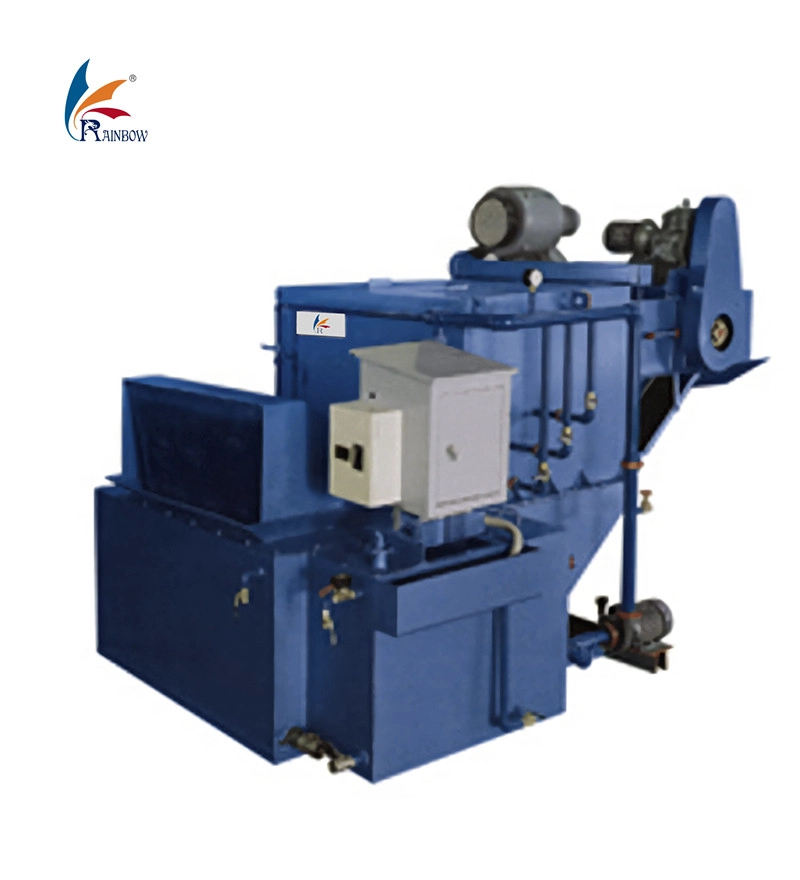

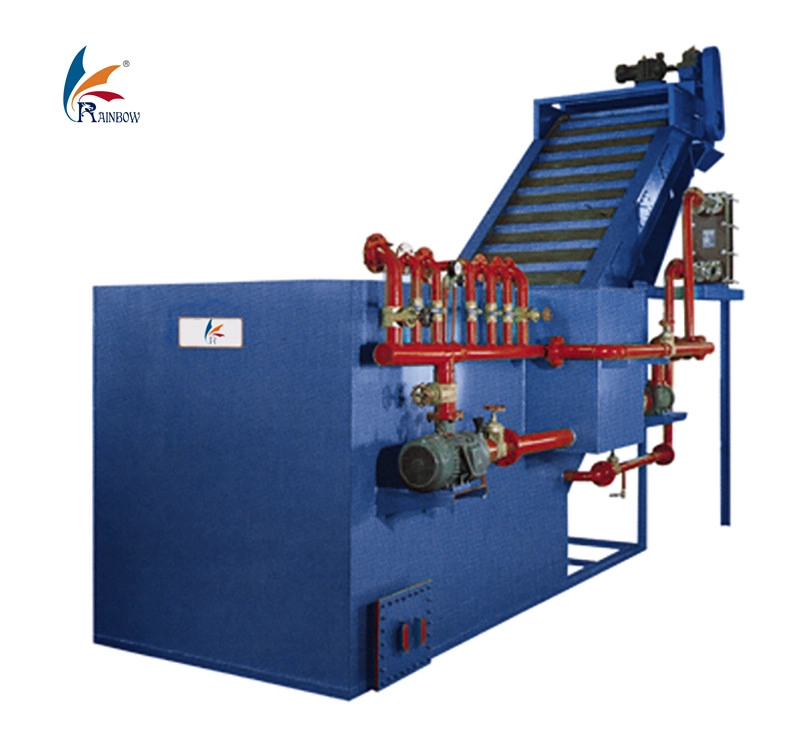

Continuous Mesh Belt Quenching Furnace | Automatic Heat Treatment Furnace for Fastener Hardening
- - Model: HR-QF-120
- - Type: Continuous mesh belt type quenching furnace
- - Maximum working temperature: 950 ℃
- - Temperature control accuracy: ± 5 ℃
- - Mesh belt width: 400 mm
- - Production capacity: 80 – 150 kg/hour
- - Heating power: 120 kW
- - Power supply: Customizable (380V / 220V / 415V, 3 Phase, 50/60Hz)
- - Heating method: Electric resistance heating
- - Quenching medium: Water / oil / polymer solution (optional)
- - Control mode: PLC + touch screen intelligent control
- - Temperature control: PID automatic adjustment
- - Overall dimension: 6500 × 1200 × 1600 mm
- - Suitable workpiece: Bolts, screws, nuts, nails, pins and small metal parts
Product Overview
The HR-QF-120 mesh belt quenching furnace is a professional heat treatment equipment for metal hardening process. It is mainly used for quenching, tempering and normalizing of carbon steel, alloy steel, stainless steel and other metal workpieces. The continuous mesh belt transmission design realizes fully automatic production without manual intervention, which greatly improves production efficiency and reduces labor intensity.
Key Features
- Continuous mesh belt conveying, fully automatic production, stable and efficient
- Multi-zone independent temperature control, uniform furnace temperature, ±5℃ precision
- High-grade refractory fiber insulation, low heat loss, energy saving and consumption reduction
- PLC + touch screen control system, can store multiple process parameters, easy to operate
- Adjustable mesh belt speed, matching different heating time requirements
- Optional water quenching, oil quenching or polymer quenching system
- Built-in over-temperature protection, fault alarm and other safety mechanisms
- Customizable furnace size and configuration according to production capacity requirements
Technical Specifications
| Item | Parameter |
|---|---|
| Model | HR-QF-120 |
| Furnace Type | Continuous mesh belt type |
| Max. Working Temperature | 950 ℃ |
| Temperature Uniformity | ± 5 ℃ |
| Mesh Belt Width | 400 mm |
| Production Capacity | 80 – 150 kg/hour |
| Heating Power | 120 kW |
| Power Supply | Customizable (380V/220V/415V, 3 Phase, 50/60Hz) |
| Heating Method | Electric resistance heating |
| Control System | PLC + touch screen |
| Overall Dimension | 6500 × 1200 × 1600 mm |
Application Fields
This quenching furnace is widely used in fastener manufacturing, hardware processing, automotive parts, electronic components, machinery manufacturing and other industries. It is suitable for mass continuous heat treatment of bolts, screws, nuts, nails, rivets, pins and other small metal parts, and can meet the process requirements of quenching, tempering, normalizing and stress relief.
Supply Scope
- 1 set main quenching furnace body
- 1 set mesh belt transmission system
- 1 set quenching cooling tank
- PLC control cabinet with touch screen
- English operation manual and maintenance manual
- Standard spare parts kit and maintenance tools
Service & Support
We provide one-year warranty for the whole equipment, lifetime technical support and online remote guidance. We can customize furnace size, temperature range, quenching method and production capacity according to customers' specific process requirements and production scale.
