Screw making machine-Heading machine-Best quality-China supplier

  • Model:RSH-4-40
  • Max. Blank Dia..(mm)           4
  • Max. Blank Length (mm)        40
  • Stroke (mm)                   68
  • Output Speed (pcs/min)   150-180
  • Die dia. (mm)                 30
  • Cut-off die dia.(mm)          15
  • Punch Die 1st  (mm)           18
  • Punch Die 2nd   (mm)          18
  • Main motor power(kw)         2.2
  • Net Weight(kgs)             1200

Machine overview

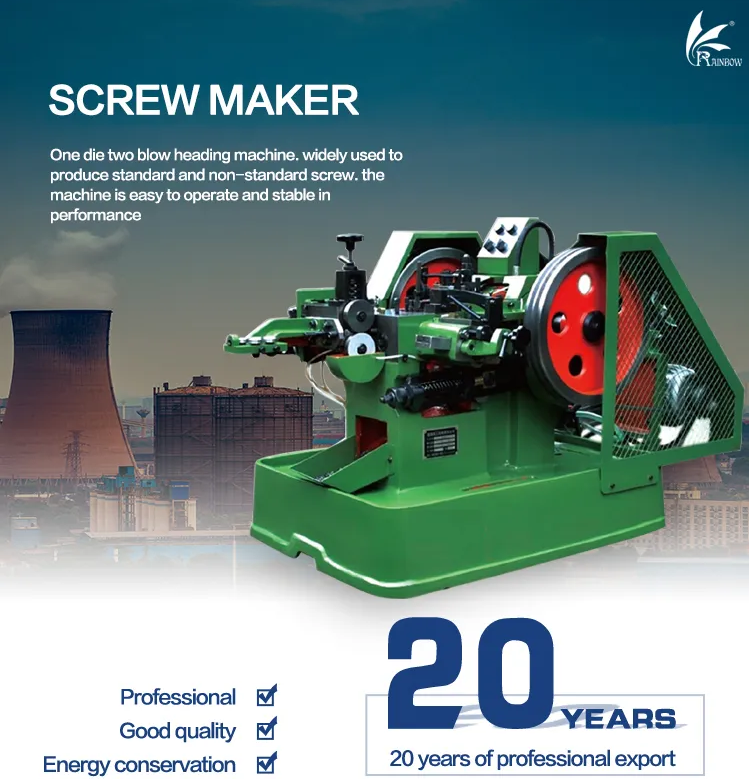

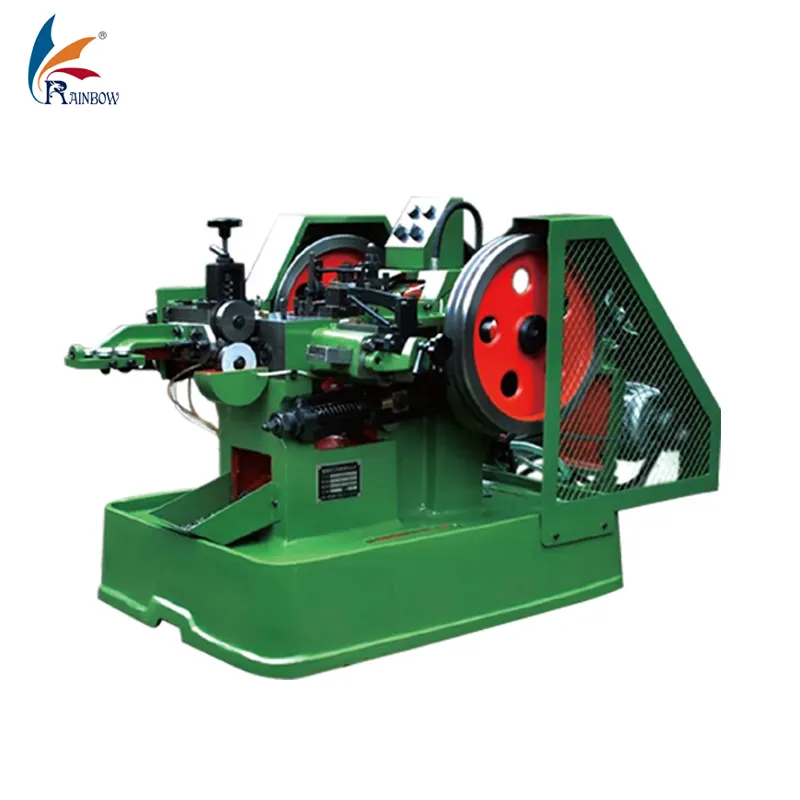

The heading machine is professional cold upsetting forming machine,which is matched with automatic thread rolling machine in the whole plant of making screws.

Its porpose is to the adopted such as carbon steel,stainless steel,alumium,copper and other matrial wire,with appropriate mould,according to the allowable pressure wire than,under the effect of crank-shaft connecting rod drive the slider,automated,fast after the required size of the wirewill be automatically shear,extrusion in the mould for needed fastener head type,stem diameter,facillate thread rolling ,or become a qualified rivet type fastener ,the heading machine automaticapply processes the wire into semi-finished products.

Production area


Detail instruction




Our workshop


Exhibition



Warmly welcome your inquiry!
