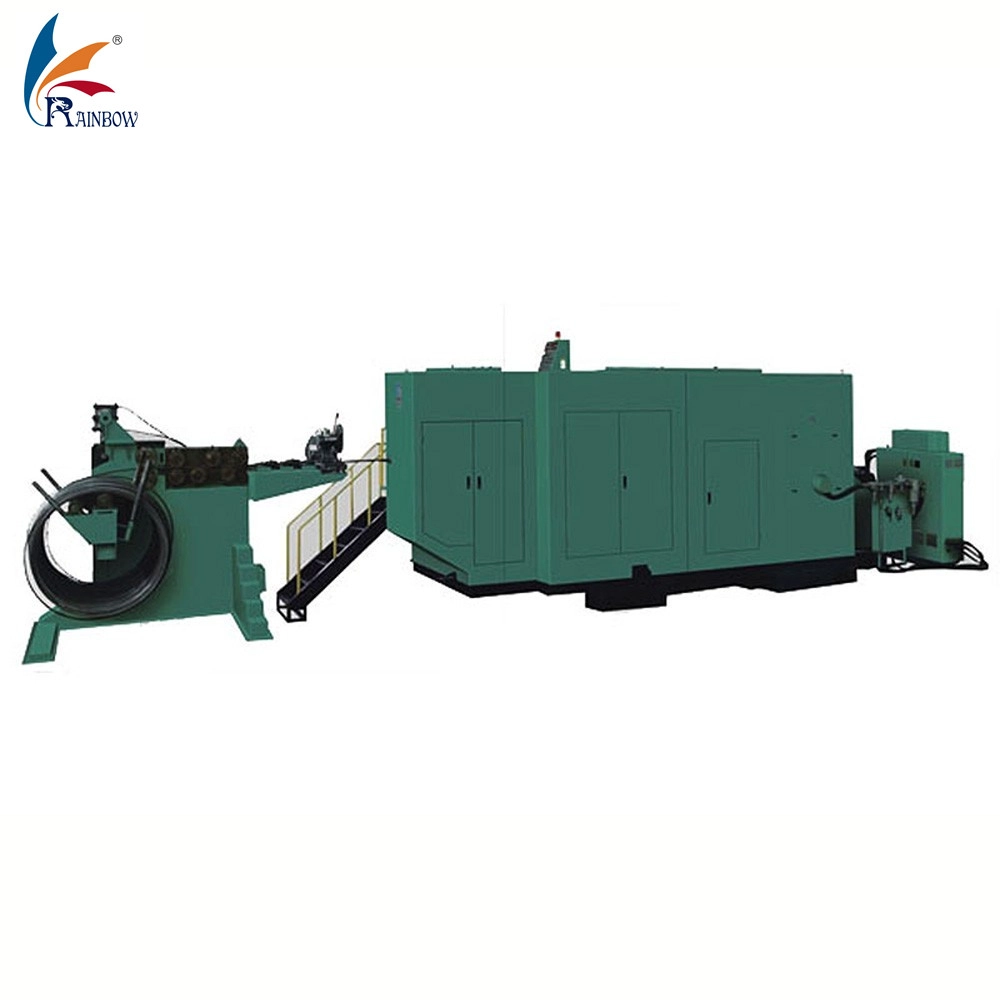

High Speed Automatic Multi-Station Cold Heading Machine | Precision Cold Forging Machine for Bolts, Nuts, Screws & Special Fasteners
- RBF-4S Multi-Station Cold Heading Machine
- - Number of forming stations: 4 stations
- - Max. wire cutting diameter: Φ4–Φ11 mm
- - Max. cutting length: 85 mm
- - Rated upsetting force: 110 Ton
- - Production speed: 120–180 pieces/min
- - Main drive motor power: 15 kW
- - Control system: PLC + Touch Screen HMI
- - Applicable materials: Carbon steel, alloy steel, stainless steel, copper, aluminum
- - Overall dimensions (L×W×H): 3200×1800×1600 mm
- - Net weight of machine: 8.5 Tons
- 14B-5S Multi-Station Cold Heading Machine
- - Number of forming stations: 5 stations
- - Max. wire cutting diameter: Φ5–Φ14 mm
- - Max. cutting length: 120 mm
- - Rated upsetting force: 140 Ton
- - Production speed: 100–150 pieces/min
- - Main drive motor power: 22 kW
- - Control system: PLC + Touch Screen HMI
- - Applicable materials: Carbon steel, alloy steel, stainless steel, copper, aluminum
- - Overall dimensions (L×W×H): 4200×2200×1900 mm
- - Net weight of machine: 14 Tons
- 17B-6S Multi-Station Cold Heading Machine
- - Number of forming stations: 6 stations
- - Max. wire cutting diameter: Φ6–Φ17 mm
- - Max. cutting length: 160 mm
- - Rated upsetting force: 180 Ton
- - Production speed: 80–120 pieces/min
- - Main drive motor power: 37 kW
- - Control system: PLC + Touch Screen HMI
- - Applicable materials: Carbon steel, alloy steel, stainless steel, copper, aluminum
- - Overall dimensions (L×W×H): 5200×2600×2200 mm
- - Net weight of machine: 22 Tons
- Customized configurations are available according to your specific product and output requirements.
