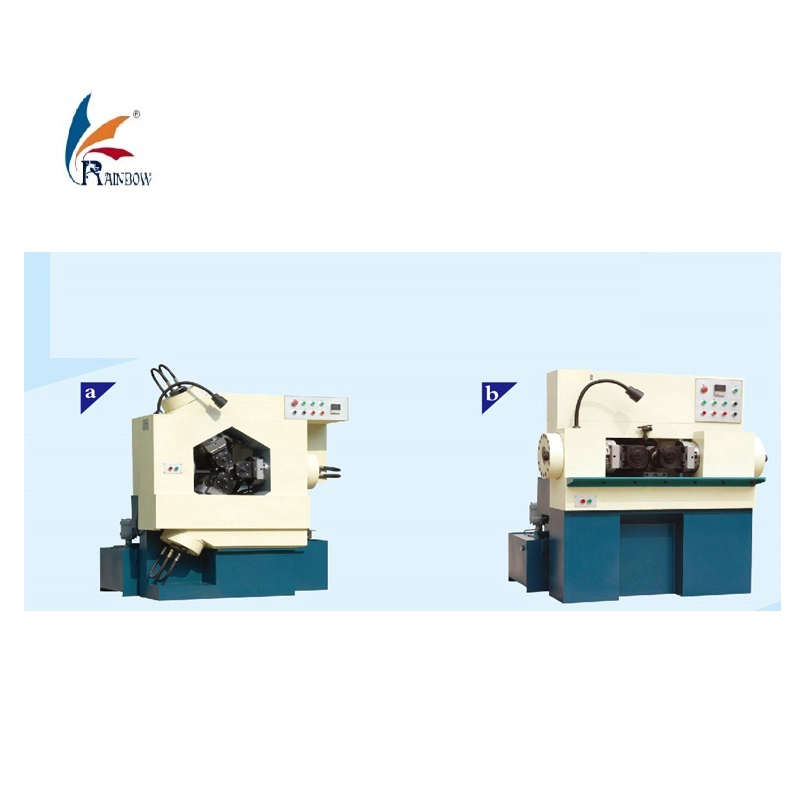

Automatic Hydraulic Two Axis Thread Rolling Machine High Precision Cold Forming Screw Bolt Thread Maker for Steel Fastener and Shaft Parts
- Parameter Specification
- Machine Model ZA28-40 Standard Two-axis Thread Rolling Machine
- Processing Diameter Range 4mm – 42mm
- Applicable Thread Pitch 0.5mm – 6mm
- Max. Rolling Pressure 200kN (20 Ton)
- Spindle Speed 28 / 35 / 45 / 56 rpm (stepped adjustable)
- Spindle Tilt Angle ±5°
- Rolling Die Outer Diameter 120mm – 205mm
- Rolling Die Bore Diameter 75mm
- Max. Die Thickness 140mm
- Main Drive Motor Power 7.5kW
- Hydraulic Motor Power 3kW
- Feed Stroke 0 – 12mm
- Power Supply 380V / 3Phase / 50Hz (customizable)
- Machine Dimension (L×W×H) 1800×1250×1450 mm
- Net Weight Approx. 2800 kg
