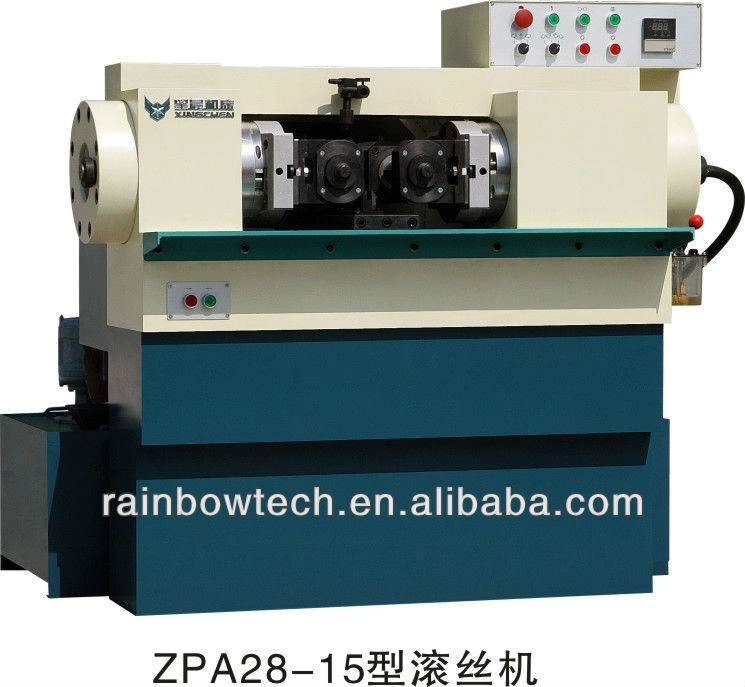

Automatic High-Speed Two-Die Thread Rolling Machine, Industrial Two-Roll Cold Thread Forming Equipment for Fastener Mass Production
- Model: TR-2D Series Two-Die Thread Rolling Machine
- Processing Range: M2 – M24 Bolts, Screws, Studs & Threaded Fasteners
- Max Rolling Force: 60 – 160 KN
- Rolling Die Specification: Φ105×80 / Φ120×100 mm (customizable)
- Production Speed: 60 – 180 pcs/min
- Main Motor Power: 4 – 11 KW
- Control System: PLC + Touch Screen Operation
- Feeding Mode: Automatic Vibratory Bowl Feeding
- Working Voltage: 380V 50Hz (voltage customizable)
- Thread Accuracy: Grade 4h – 6g (ISO standard)
- Lubrication System: Automatic Circulating Cooling & Lubrication
- Overall Dimension: 1500 × 1050 × 1380 mm
- Net Weight: 1800 – 3200 KG
- Core Features: Two-roll cold forming, high thread finish, low noise, quick die replacement
- Application: Fastener factories, hardware manufacturing, bolt & screw production plants
- Warranty: 12 months
