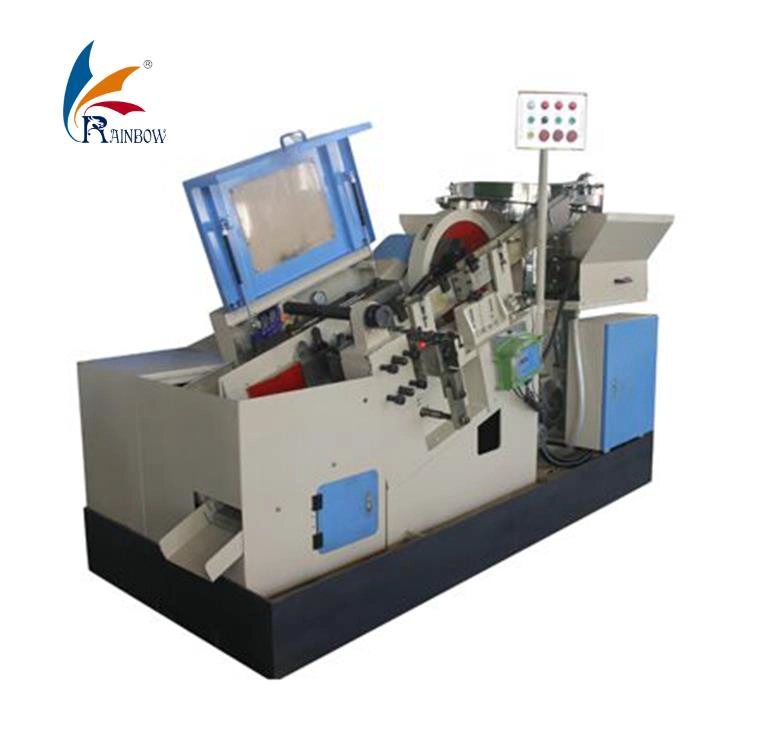

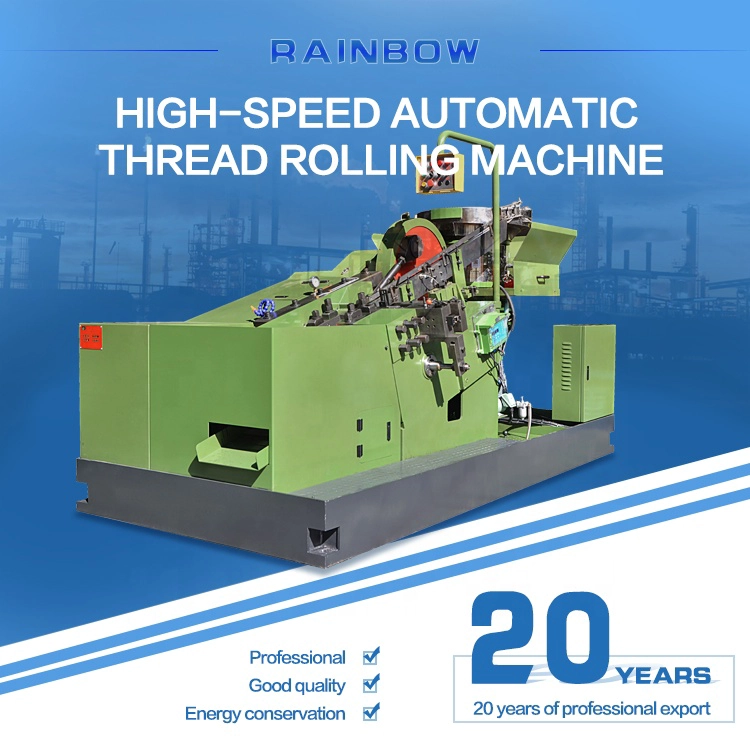

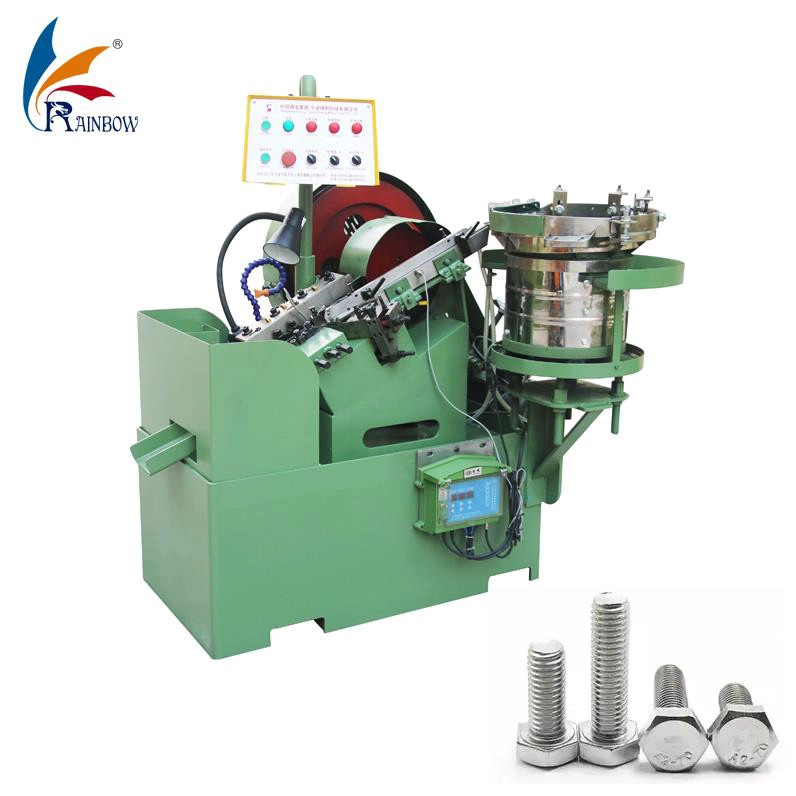

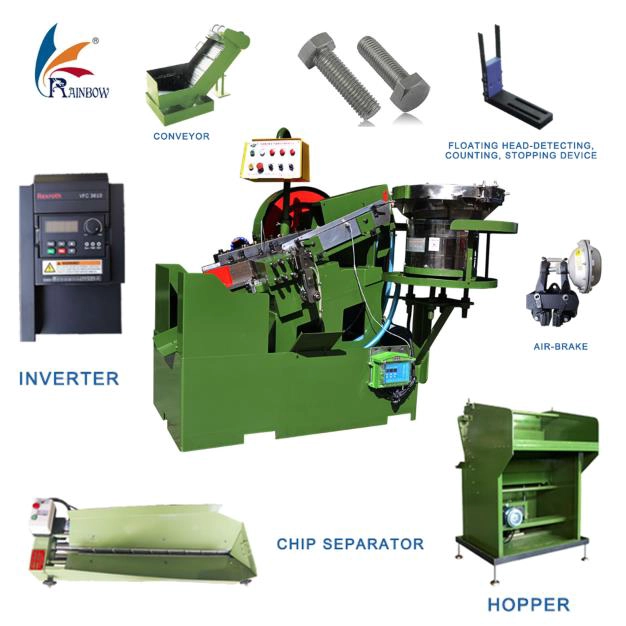

High Precision Automatic Thread Rolling Machine | High-Speed Cold Forming Threader for Bolts & Fasteners
- Item Specification
- Processing Diameter Range M3 – M24 (Ø3mm – Ø24mm)
- Maximum Thread Length 150mm / 300mm (customizable)
- Production Capacity 120 – 200 pieces/min
- Thread Accuracy Grade 6g / 6h (ISO standard)
- Die Material Cr12MoV / High-Speed Steel (HRC 58–64)
- Main Motor Power 5.5kW – 11kW
- Machine Weight 900kg – 2500kg
- Control Mode Automatic feeding + mechanical drive
- Lubrication System Centralized forced oil lubrication
- Applicable Materials Carbon steel, alloy steel, stainless steel, copper, aluminum
