Cheap acid hanging automatic production lineCheap acid hanging automatic production lineCheap acid hanging automatic production line

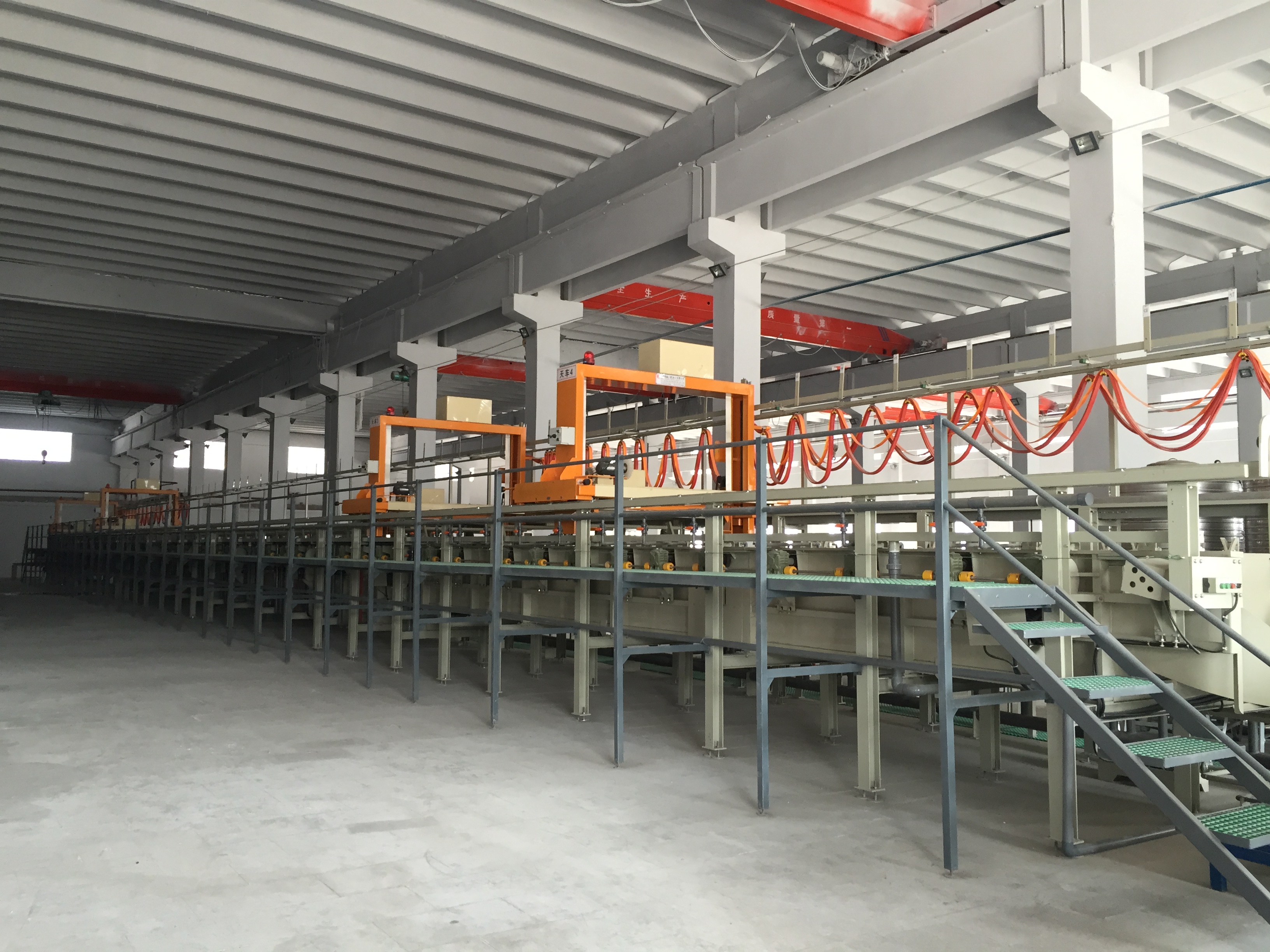

Cheap acid hanging automatic production line

  • 1. Large roll can be very PP PP- castable, CNC drilling.
  • 2. The transmission system using a transmission gear coupling, electromagnetic wave velocity of each station.
  • 3. Automatic weighing feeding device can reduce labor intensity.
  • 4. passivation automatic folder barrel washing equipment and automatic rejection of water colors dryer.
  • Surface water tank
  • Anode holder PP
  • Anode rod φ35 × 3 Haomi brass
  • Copper cathode support
  • PP housing PP
  • Arm barrel φ390 × 1200 Haomi flashlight 15 mm homemade white PP board, steel castings
  • Sealing plate PP
  • Stainless steel fasteners and groove, other galvanized bolts

Galvanizing equipment. Galvanizing plant.

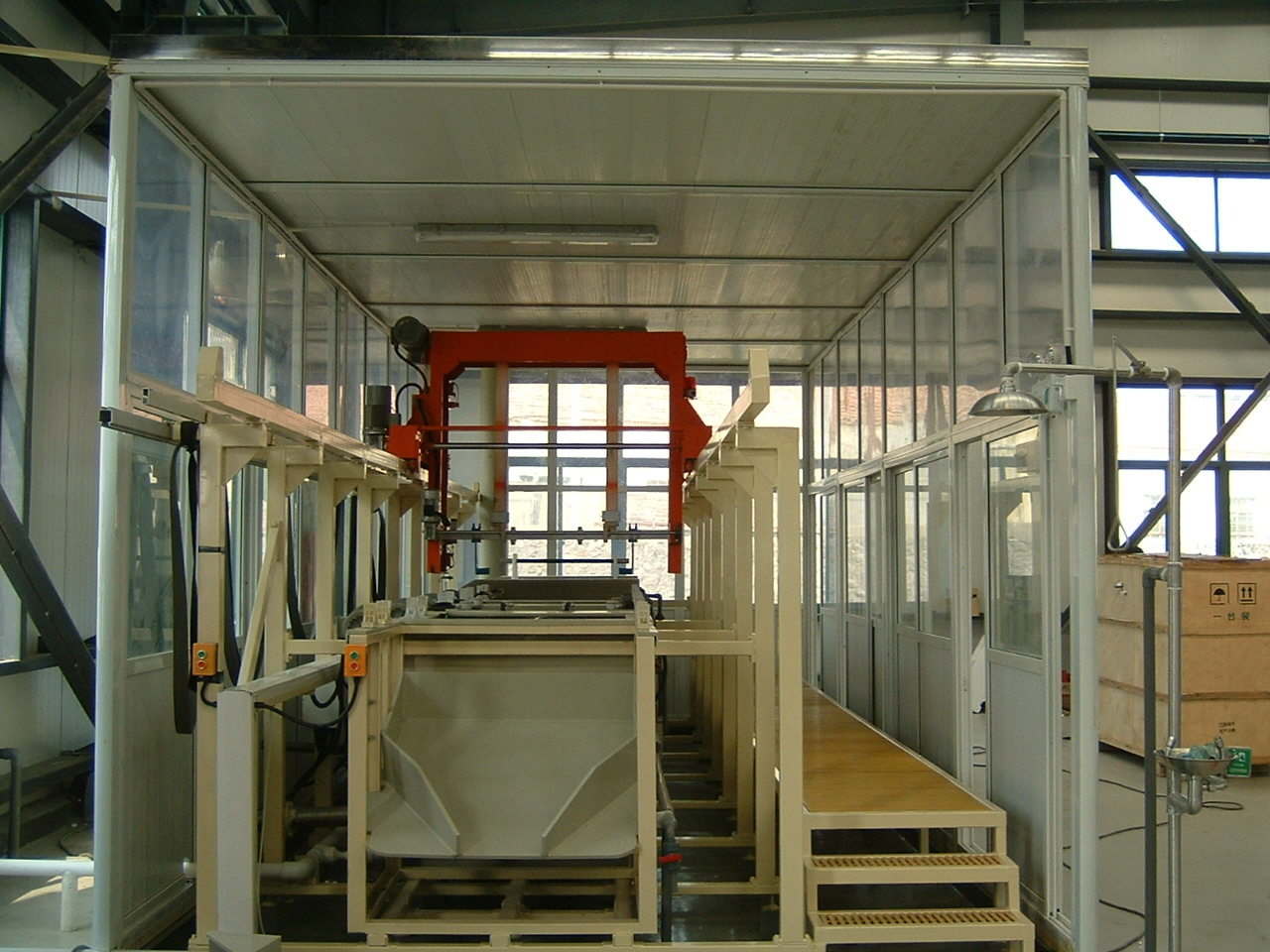

Barrel plating automatic production line can be adapted to a variety of small parts, standard parts and various types of plating require a substantial increase in labor productivity. Plating has provided a full set of expectations from the exclusion of water and drying equipment.
1. Large roll can be very PP PP- castable, CNC drilling.
2. The transmission system using a transmission gear coupling, electromagnetic wave velocity of each station.
3. Automatic weighing feeding device can reduce labor intensity.
4. passivation automatic folder barrel washing equipment and automatic rejection of water colors dryer.
   We can dump the water from the plating material was dried until a full equipment. Dedicated AC

No name size Materials and instructions unit QUA note
I Tank
1 Pre-degreasing tank 1500 × 900 × 1100 3mm304 stainless steel plate, surrounded by strengthening and insulation A Made in China
2 Chemical degreasing tank 1500 × 3200 × 1100 3mm304 stainless steel plate, surrounded by strengthening and insulation A Made in China
3 Electrically released sump 1500 × 1800 × 1100 15 mm PP plate, PP board packaging by strengthening and surrounded A Made in China
4 Barrel plating bath 1500 × 4500 × 1100 15 mm PP plate, PP board packaging by strengthening and surrounded A Made in China
Fives Hydrochloric acid wash tank 1500 × 2400 × 1100 15 mm PP plate, PP board packaging by strengthening and surrounded A Made in China
6 Wash three cans 1500 × 2400 × 1100 15 mm PP plate, PP board packaging by strengthening and surrounded A Made in China
7 Clean water tank quadruple 1500 × 3200 × 1100 15 mm PP plate, PP board packaging by strengthening and surrounded A Made in China
8 Double wash-basin 1500 × 1600 × 1100 15 mm PP plate, PP board packaging by strengthening and surrounded A Made in China
9 Passive tank 850 × 1600 × 900 Haomi 15 mm PP plate, PP board packaging by strengthening and surrounded A Made in China
10 Wash three cans 850 × 2700 × 900 Haomi 12 mm PP plate, PP board packaging by strengthening and surrounded A Made in China
11 Light cleaning four times  850 × 3600 × 900 Haomi 12 mm PP plate, PP board packaging by strengthening and surrounded A Made in China
12 Molten zinc tank 5000 × 1300 × 1100 6mmQ235 plate, surrounded by strengthening A Made in China
III Mechanical part
1 Rolling Gantry Rail CBG-1 Siemens import motor running
2 High passive driving bucket clip CBJ-1A Travel motor Taiwan's Teco
3 rail  100 × 60 square steel rail
4 High iron box 150 × 150mmsquare steel
Fives Pillar and support 60 × 80mmsquare steel
6 Bottom frame ^ H 200 60 × 80mmsquare steel
7 Wet tank bottom with PP board 8mmPP
8 Transmission mechanism Each gear coupling rotary table
9 Weighing feeder Dump feeder, vibration feeder, weighing feeding dolly
IV Electrical Control
1 PLC automatic control cabinet Control 4 drivers
2 Auxiliary equipment control cabinet
3 With the car with manual control box
4 touch screen A 10.4-inch color screen
Fives Inverter 5.5K
6 Stainless steel trough, A3 bracket
7 Aluminum positioning groove, hit the block
8 Truck Line Advanced 40-core flat cable
9 Slip line trolley
10 Proximity switches, photoelectric switches S18SN6DL
11 thermostat DTA4848R1
12 Electric heating device off automatically low
13 Bridge, threading pipe, wire
A Made in China





Galvanizing equipmentThere galvanized bucket and rack plating equipment, we can do it according to your requirements.
If you have any questions, please feel free to contact me.
