High Quality Heading Machine at Best PriceHigh Quality Heading Machine at Best Price

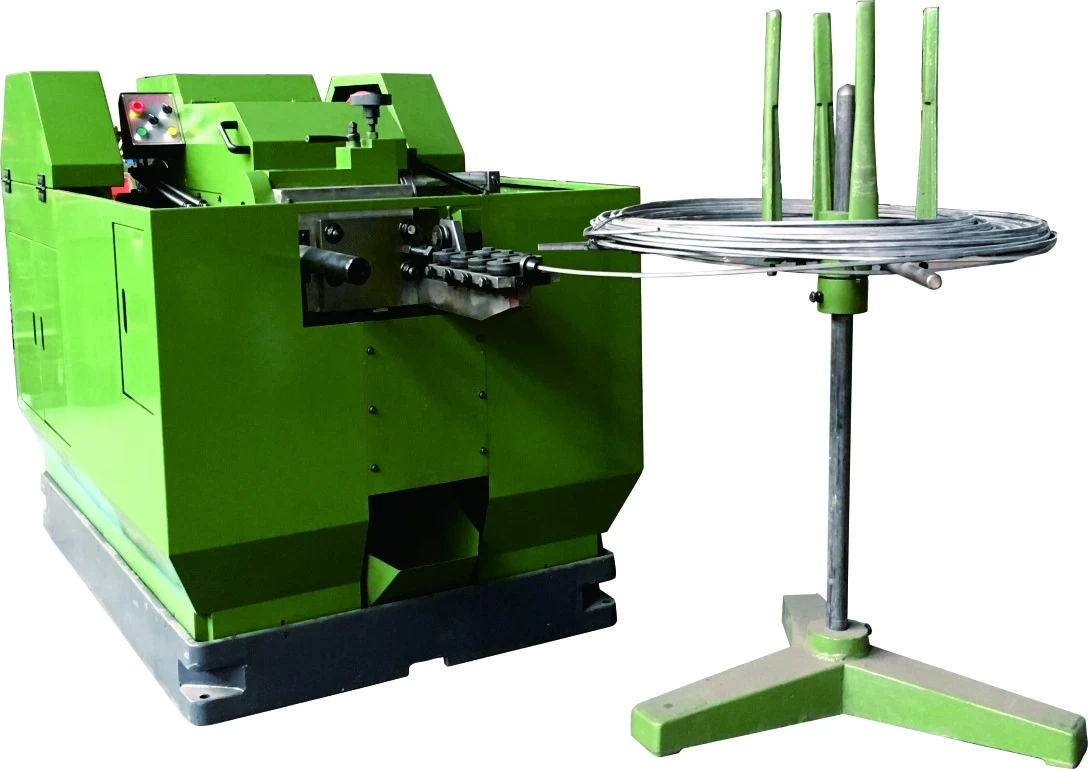

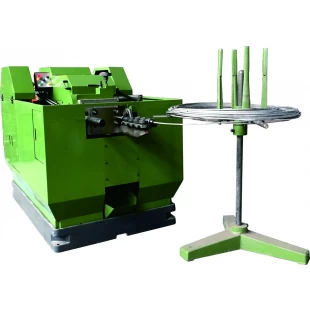

High Quality Heading Machine at Best Price

  • Specification RSH3-20 RSH4-40 RSH5-50G RSH6-70 RSH8-90 RSH10-120 RSH12-150
  • Max blank Dia 3mm 4mm 5mm 6mm 8mm 10mm 12mm
  • Max blank length 20mm 40mm 50mm 70mm 90mm 120mm 150mm
  • Main slide Stroke 37mm 68mm 92mm 90mm 130mm 150mm 190mm
  • Output(pcs/min) 150-200 150-180 160-180 90-100 80-90 50-60 40-50
  • Main Die Dia(mm) Φ20×35 Φ30×60 Φ34.5×68 Φ50×120 Φ60×120 Φ80×160 Φ80×200
  • Cut off die Dia(mm) Φ13×25 Φ13×30 Φ19×35 Φ24×40 Φ28×45 Φ40×50 Φ46×60
  • Punch die(1 st) Φ18×50 Φ25×65 Φ35×75 Φ35×120 Φ40×120 Φ55×150 Φ60×180
  • Punch die(2 nd) Φ18×50 Φ25×65 Φ31×75 Φ35×120 Φ40×120 Φ55×150 Φ60×180
  • Main motor power 1.1kw 3.0kw 3.0kw 5.5kw 7.5kw 11kw 18.5kw
  • Dimensions L*W*H(mm) 1400*750*900 1800*850*1150 1800*1000*1250 2500*1400*1600 3600*1600*1800 4800*1800*1700 5200*1900*1800
  • Weight(kg) 650 1200 2100 3300 4800 8450 14000
  • FOB China Port($) 4450 6050 8050 10,750 17,900 23900 46850

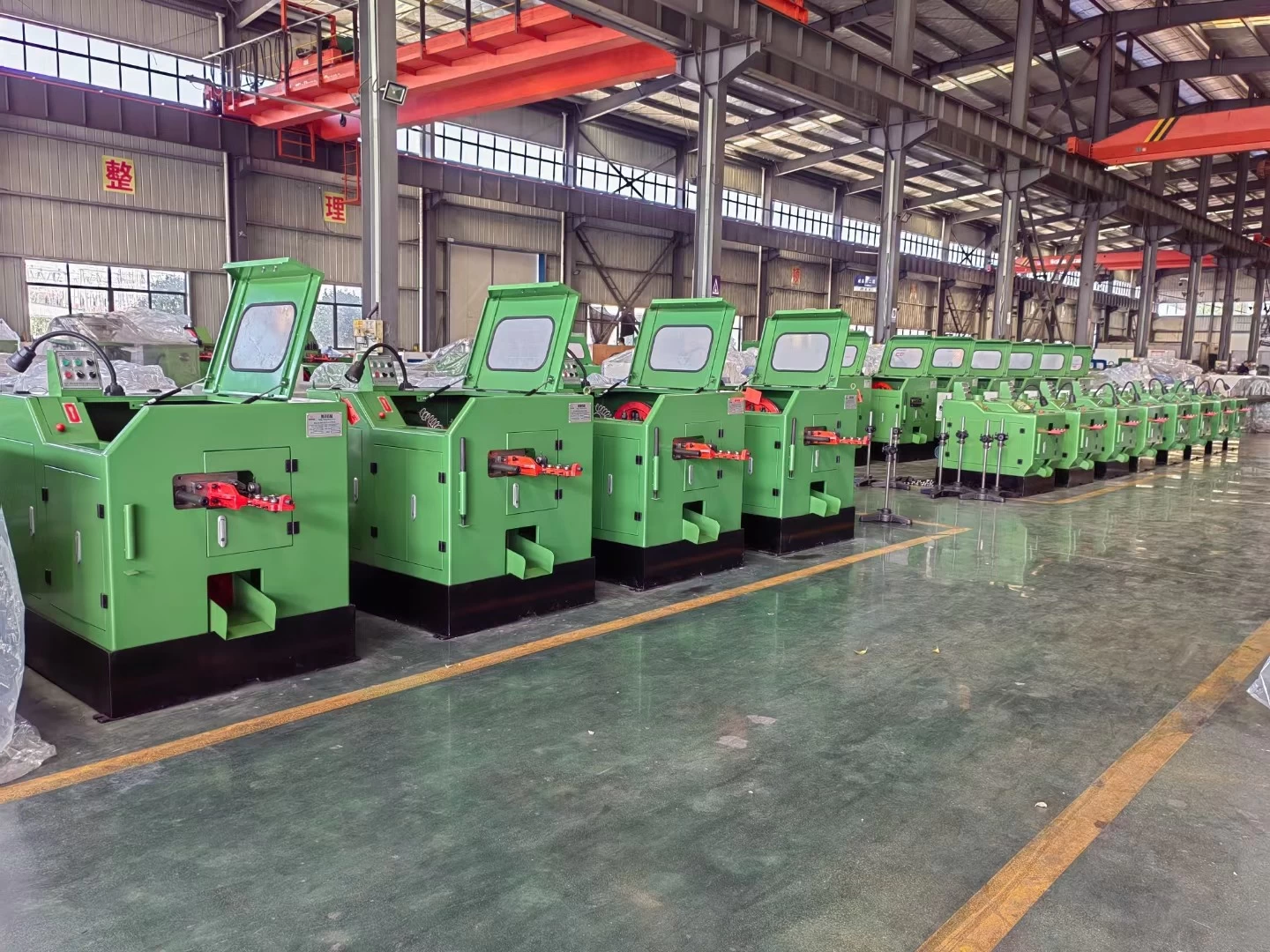

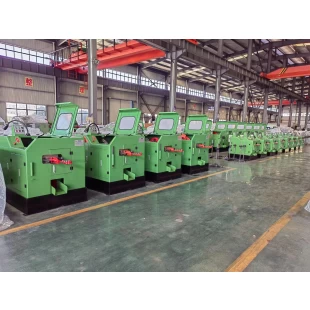

The multi-station nut cold heading machine produced by our company is well-made, especially for the production and processing of complex products.The precision components produced by many domestic military enterprises use the equipment provided by our company, and even many well-known Taiwanese equipment cannot achieve this precision.
