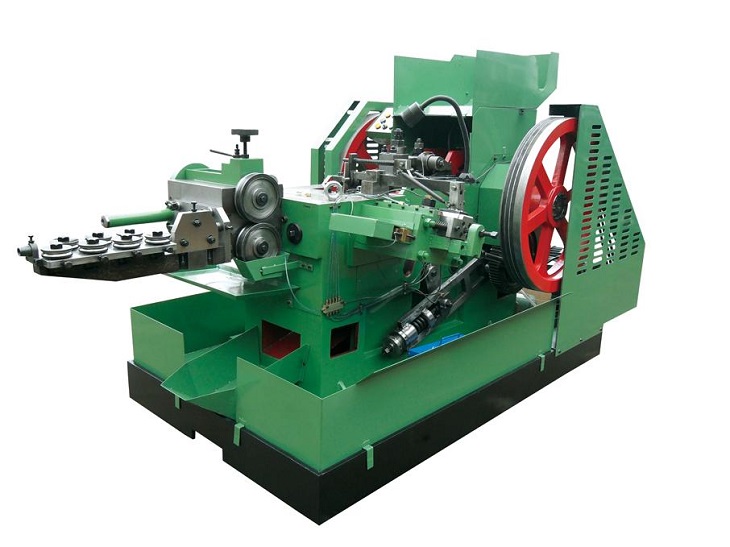

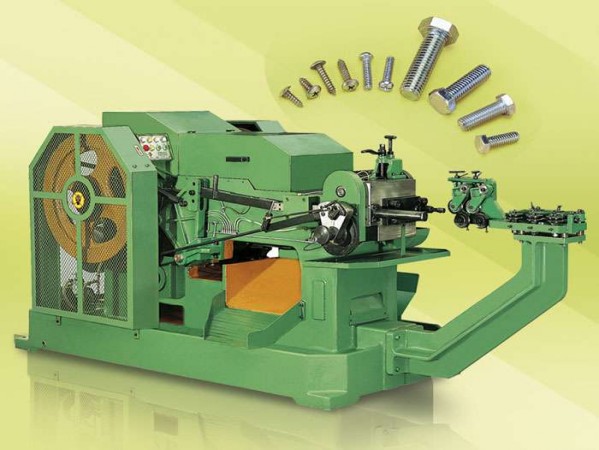

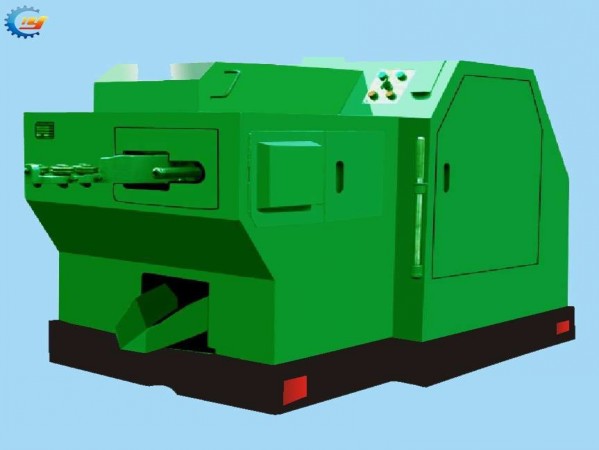

Automatic Screw Cold Heading Machine China Supplier
- Model: HRS series
- Max.dia: 10mm
- Max.blank length: 150mm
- Itinerary: 220mm
- Output: 60-200pcs per minute
- Mold diameter: 55mm
- Display diameter: 28mm
- Oil pump: 0.25kW
Salient features:
1. These cold pupa machines are fully automatic. The training is simple and easy to operate. It is equipped with similar components such as solid -state die -casting blank bolts, screws, rivets and other similar components.Cutting off and elimination mechanisms have safe equipment. If the machine is abnormal, it will prevent any major accidents.
2.A actively eliminated and set up funds 1 and second Chong, to eliminate the possibility of these jumping during the operation of the part.
3. Some additional cost machines will be equipped with pneumatic clutch and amplifier; automatically centralized lubrication systems can provide sufficient amount of lubricating all bearings surface.
The main technical parameters:
1. These cold pupa machines are fully automatic. The training is simple and easy to operate. It is equipped with similar components such as solid -state die -casting blank bolts, screws, rivets and other similar components.Cutting off and elimination mechanisms have safe equipment. If the machine is abnormal, it will prevent any major accidents.
2.A actively eliminated and set up funds 1 and second Chong, to eliminate the possibility of these jumping during the operation of the part.
3. Some additional cost machines will be equipped with pneumatic clutch and amplifier; automatically centralized lubrication systems can provide sufficient amount of lubricating all bearings surface.
The main technical parameters:
| Model | HRS-5 | HRS-10 | HRS-15 | HRS-20 | HRS-25 | HRS-30 |
| maximum.blank Dia | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| maximum.Blank length | 27 mm | 40 mm | 64 mm | 110 mm | 120 mm | 150 mm |
| journey | 38 mm | 64 mm | 92 mm | 154 mm | 154 mm | 220 mm |
| Yield Perminin | 170-190 | 120-180 | 130-160 | 70-90 | 80-100 | 60 |
| die Dia | 20 mm | 34.5 mm | 34.5 mm | 50 mm | 54 mm | 55 mm |
| Cutting mold Dia | 13.5 mm | 15 mm | 19 mm | 28 mm | 28 mm | 28 mm |
| Punching mold (1. | 18 mm | 24 mm | 31 mm | 38 mm | 38 mm | 38 mm |
| Punching mold (second. | 18 mm | 20 mm | 31 mm | 38 mm | 38 mm | 38 mm |
| main motor power | 1HP | 2HP | 2HP | 5HP | 7HP | 10HP |
| Oil pump power | 1 /4HP | 1 /4HP | 1 /4HP | 1 /4HP | 1 /4HP | |
| Long, width and height (centimeter) | 137x85x102 | 103x85x95 | 200x100x120 | 300x125x140 | 300x150x140 | 445x174x151 |
| net weight | 500 kg | 1100 kg | 1600 kg | 3000 kg | 3000 kg | 7200 kg |
| gross weight | 560 kg | 1180 kg | 1700 kg | 3200 kg | 3700 kg |

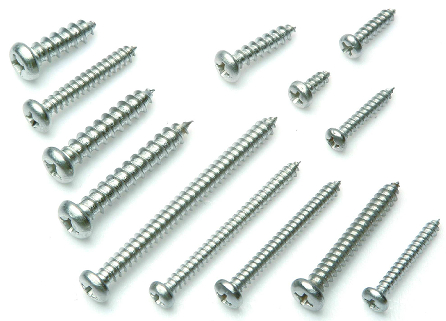

Production project:
